300V UL Power Cord Cable SPT-3 10AWG 2C ABC Conductors OD9.10x18.20mm PVC Black

Product Categories
WCH Cable Industrial Co., Ltd.
Contact Now

300V UL Power Cord Cable SPT-3 10AWG 2C ABC Conductors OD9.10x18.20mm PVC Black

Brand Name : WCH Cable

Model Number : SPT-3 10AWG 2C OD9.10x18.20 BLK

Certification : UL & CUL Certificate

Place of Origin : Dongguan, China

MOQ : 5000 meters

Price : USD0.1521

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel

UL Type : SPT-3

Application : Power Cord Cable

Conductor Gauge : 10AWG

Diameter : 9.10x18.20mm

Jacket Material : PVC

Colour : Black

Contact Now

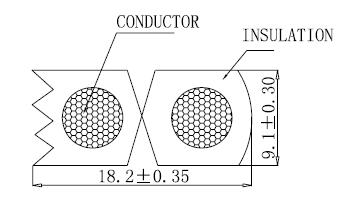

300V UL Power Cord Cable SPT-3 10AWG 2C ABC Conductors OD9.10x18.20mm PVC Black

Conductor Specification (AWG) 10
Section Area (mm²) 5.3204
Material 　 Bare Stranded Copper
Configuration (mm) AS105/0.254±0.008
Conductor Quantity 　 2F
Insulation Average Thickness (mm) 2.90
Minimum Thickness (mm) 2.31
Over Diameter (mm) 9.10±0.30*18.20±0.35
Material 　 PVC (RoHS)
Colour 　 Black
Electrical
Capability		 Rated Temperature (℃) 105
Rated Voltage (V) 300
Conductor Resistance (Ω/KM 20℃) 3.41
Insulation Resistance (MΩ/KM 20℃) 10
Flammability Fire Retardance 　 VW-1
　 　 CUL FT1
Approval UL Style Number 　 SPT-3
Environmental Standard 　 Lead Free
　 　 RoHS & Reach Compliant
