UL21101 30V Low Voltage FRPE Jacketed LSZH Speaker Cable

Product Categories
WCH Cable Industrial Co., Ltd.
Contact Now

UL21101 30V Low Voltage FRPE Jacketed LSZH Speaker Cable

Brand Name : WCH Cable

Model Number : WCH-UL21101

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD 0.15 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000000 meter per Month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel

Feature : Low Voltage, LSZH

Style Number : UL21101

Use : Speaker

Jacket Type : FRPE, FR-PE

Rated Voltage : 30V

Advantage : Hazardous Substances Free

Contact Now

UL21101 30V Low Voltage FRPE Jacketed LSZH Speaker Cable

Conductor: High Purity of Copper Wire, Stranded or Solid.

Insulation: HDPE, XLPE, FRPE, PP

Jacket: Extruded FRPE

Rated Temperature: 60C or 80C

Rated Voltage: 30V

Flame Retardant Grade: VW-1, FT-1, FT-2

Executed Standard: Appliance Wiring Material UL 758.

Application: Internal wiring of appliances and external interconnection of electronic equipment.

Parameters of 30V Low Voltage LSZH Speaker Cable UL21101:

Approval Style Number Cores Conductor Insulation
Thickness		 Nom.Dia Drain Screen Shield Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm No/mm Type Coverage mm mm Ω/KM
UL21101 12PR 28 7/0.127 0.12 0.65 7/0.2 AL 85% 1.05 6.80 223.00
1C 0.12 0.65
13PR 30 7/0.10 0.18 0.70 7/0.2 AL 85% 0.97 7.10 381.00
18PR 30 7/0.10 0.18 0.70 / AL 80% 0.81 7.50 381.00
19PR 30 7/0.10 0.18 0.70 7/0.127 AL 85% 1.33 8.60 381.00
25PR 28 7/0.127 0.18 0.80 7/0.127 AL 85% 1.44 9.60 223.00
25PR 28 7/0.127 0.18 0.80 / AL 80% 0.77 8.30 223.00

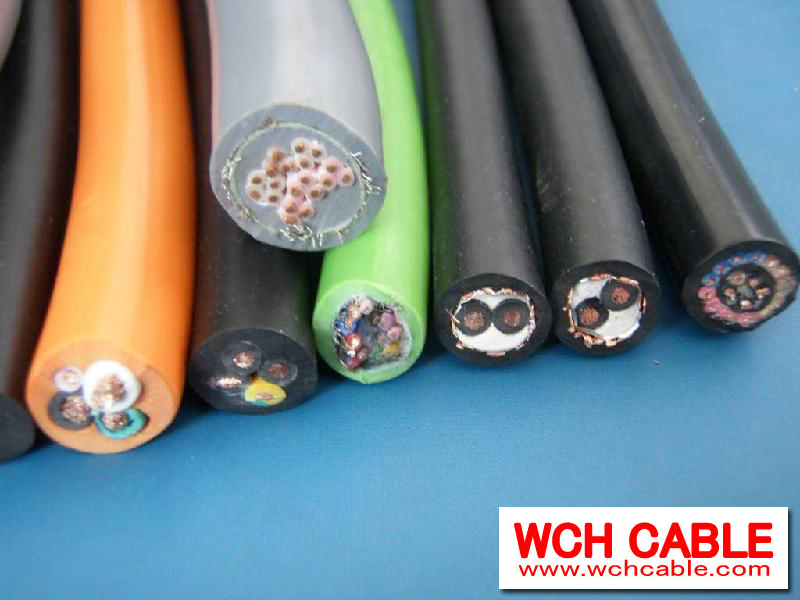

UL21101 30V Low Voltage FRPE Jacketed LSZH Speaker Cable

UL21101 30V Low Voltage FRPE Jacketed LSZH Speaker Cable

UL21101 30V Low Voltage FRPE Jacketed LSZH Speaker Cable

UL21101 30V Low Voltage FRPE Jacketed LSZH Speaker CableUL21101 30V Low Voltage FRPE Jacketed LSZH Speaker Cable

UL21101 30V Low Voltage FRPE Jacketed LSZH Speaker Cable

UL21101 30V Low Voltage FRPE Jacketed LSZH Speaker Cable

UL21101 30V Low Voltage FRPE Jacketed LSZH Speaker Cable

Tag: UL21101, UL21101 speaker cable
