UL3266 Pure Copper Conductor Irradiation XLPE Hook-up Wire Rated 125℃ 300V

Product Categories
WCH Cable Industrial Co., Ltd.
Contact Now

UL3266 Pure Copper Conductor Irradiation XLPE Hook-up Wire Rated 125℃ 300V

Brand Name : WCH Cable

Model Number : WCH-UL3266

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 610 meters

Price : USD 0.03 per meter

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 4000000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 610 meters per reel

Feature : Heat resistant

Wire Type : XLPE

Rated Temperature : 125℃

Rated Voltage : 300V

UL Style : UL3266

Irradiated : Yes

Contact Now

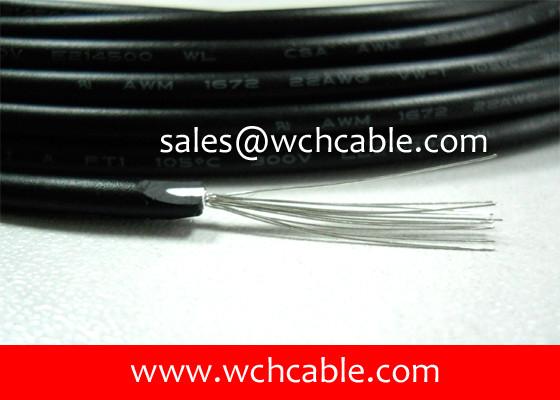

UL3266 Pure Copper Conductor Irradiation XLPE Hook-up Wire Rated 125℃ 300V

Tinned, annealed, stranded or solid copper conductor.

XL-PE insulation.

Rated temperature: 125℃. Rated voltage: 300volts.

Uniform thickness of wire to ensure easy stripping and cutting.

UL VW-1 vertical flame test verified.

Top coated conductor is available.

Application: For general purpose internal wiring of electronic or electrical equipment.

UL3266 Pure Copper Conductor Irradiation XLPE Hook-up Wire Rated 125℃ 300V

UL Style & CSA Type Conductor Insulation
Thickness		 Overall
Diameter		 Standard Put-up Conductor
Resistance
AWG No/mm mm mm Feet/reel Meter/reell Ω/KM
UL3266
(Stranded)		 32 7/0.180 0.41 1.00 2000 610 586.00
30 7/0.100 0.41 1.10 2000 610 381.00
28 7/0.127 0.41 1.20 2000 610 239.00
26 7/0.160 0.41 1.30 2000 610 150.00
24 11/0.160 0.41 1.40 2000 610 94.20
22 17//0.160 0.41 1.60 2000 610 59.40
20 21/0.178 0.41 1.80 2000 610 36.70
18 34/0.178 0.41 2.10 2000 610 23.20
16 26/0.250 0.41 2.40 2000 610 16.57
14 41/0.250 0.41 2.80 2000 610 14.60
12 65/0.250 0.41 3.40 2000 610 8.96
10 105/0.250 0.41 4.00 2000 610 5.64
