UL3182 XLPE Insulated Single Core Electronic Wire Rated 125℃ 600V

Brand Name : WCH Cable

Model Number : WCH-UL3182

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 610 meters

Price : USD 0.03 per meter

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 4000000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 610 meters per reel

Feature : Single Core Electronic Use

Wire Type : XLPE

Rated Temperature : 125℃

Rated Voltage : 600V

UL Style : UL3182

Irradiated : Yes

Contact Now

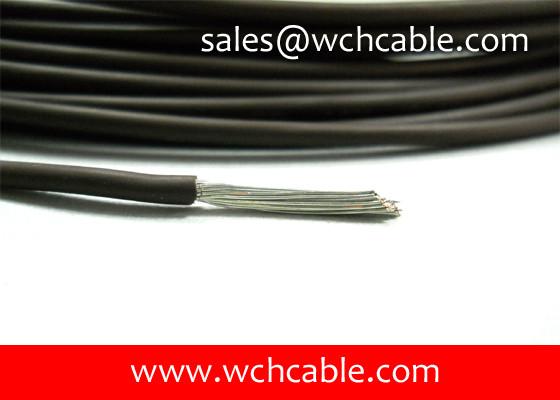

UL3182 XLPE Insulated Single Core Electronic Wire Rated 125℃ 600V

Tinned, annealed, stranded or solid copper conductor.

XL-PE insulation.

Rated temperature: 125℃. Rated voltage: 600volts.

Uniform thickness of wire to ensure easy stripping and cutting.

UL VW-1 vertical flame test verified.

Top coated conductor is available.

Application: For general purpose internal wiring of electronic or electrical equipment.

UL3182 XLPE Insulated Single Core Electronic Wire Rated 125℃ 600V

UL Style & CSA Type Conductor Insulation
Thickness		 Overall
Diameter		 Standard Put-up Conductor
Resistance
AWG No/mm mm mm Feet/reel Meter/reell Ω/KM
UL3182
CSA
(Stranded)		 30 7/0.102 1.14 2.60 2000 610 381.00
28 7/0.127 1.14 2.70 2000 610 239.00
26 7/0.16 1.14 2.80 2000 610 150.00
24 11/0.16 1.14 2.90 2000 610 94.20
22 17/0.16 1.14 3.05 2000 610 59.40
20 21/0.178 1.14 3.25 1000 305 36.70
18 34/0.178 1.14 3.50 1000 305 23.20
16 26/0.25 1.14 3.80 1000 305 14.60
UL3182
CSA
(Stranded)		 30 7/0.102 1.19 2.70 2000 610 381.00
28 7/0.127 1.19 2.80 2000 610 239.00
26 7/0.16 1.19 2.90 2000 610 150.00
24 11/0.16 1.19 3.00 2000 610 94.20
22 17/0.16 1.19 3.15 2000 610 59.40
20 21/0.178 1.19 3.35 1000 305 36.70
18 34/0.178 1.19 3.60 1000 305 23.20
16 26/0.25 1.19 3.90 1000 305 14.60
