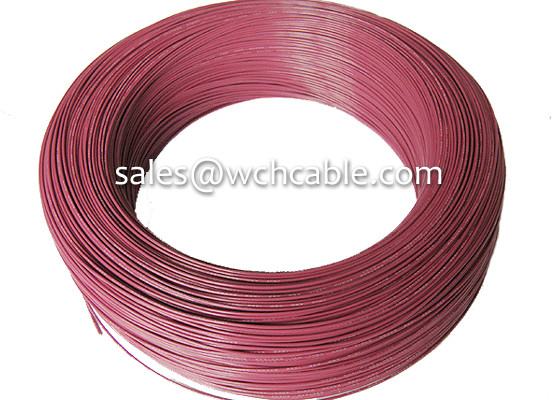

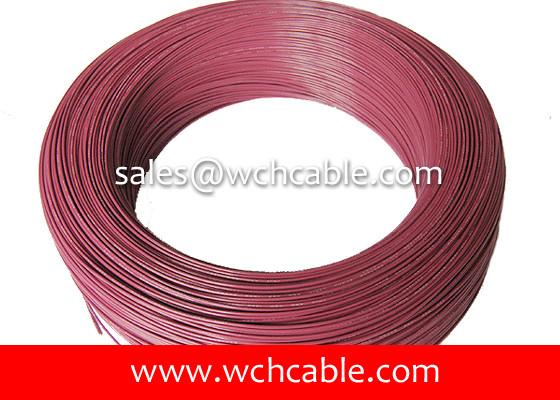

UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V

Brand Name : WCH Cable

Model Number : WCH-UL3122

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 610 meters

Price : USD 0.05 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 4000000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 610 meters per reel

UL Style : UL3122

Feature : Fiberglass Braided (Optional)

Gauge : 26AWG - 16AWG

Wire Type : Silicone Rubber

Rated Temperature : 200℃

Rated Voltage : 300V

Contact Now

UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V

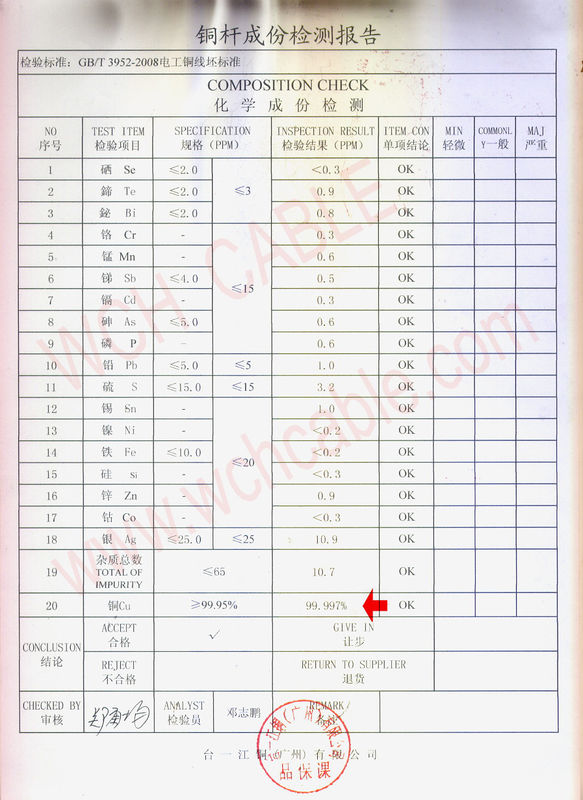

High purity of copper wire conductors
Conductor size: 26AWG ~ 16AWG
Tinned annealed or bare, stranded or solid copper conductor.
Silicone rubber insulation.
Rated temperature 200℃.
Rated voltage 300V.
Uniform wall thickness of insulation for easy stripping and cutting.
UL VW-1 and CUL FT1 flame test verified.
Top coated conductor is available.


UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V

UL Style& Cul Type Conductor Insulation
Thickness		 Overall
Diameter		 Standard Put-up Conductor
Resistance
AWG No/mm mm mm Feet/reel Meter/reel Ω/KM
UL3122
CUL AWM I A
(Stranded)		 26 7/0.16 0.38 1.55 2000 610 150
24 7/0.20 0.38 1.70 2000 610 94.2
11/0.16 0.38 1.70 2000 610
22 7/0.25 0.38 1.85 2000 610 59.4
17/0.16 0.38 1.85 2000 610
20 7/0.31 0.38 2.05 2000 610 36.70
21/0.178 0.38 2.05 2000 610
18 7/0.39 0.38 2.28 2000 610 23.20
34/0.178 0.38 2.28 2000 610
16 7/0.50 0.38 2.63 2000 610 14.60
26/0.25 0.38 2.63 2000 610
UL3122
CUL AWM I A
(Solid)		 26 1/0.39 0.38 1.55 2000 610 140
24 1/0.50 0.38 1.62 2000 610 87.5
22 1/0.64 0.38 1.75 2000 610 55.0
20 1/0.81 0.38 1.92 2000 610 34.6
18 1/1.02 0.38 2.12 2000 610 21.8
16 1/1.29 0.38 2.43 2000 610 13.7
