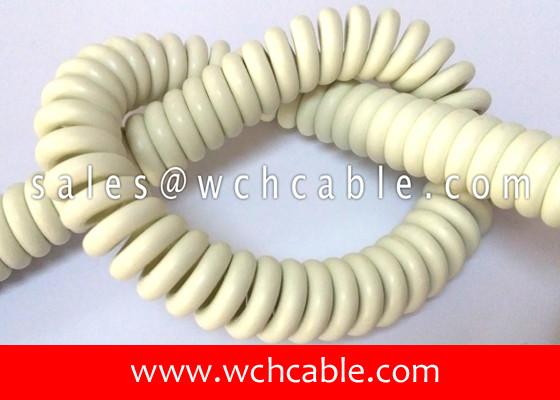

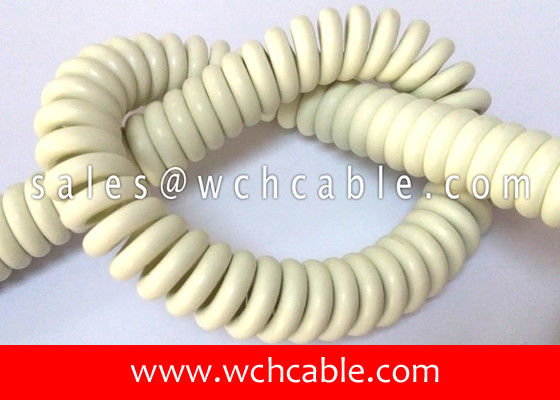

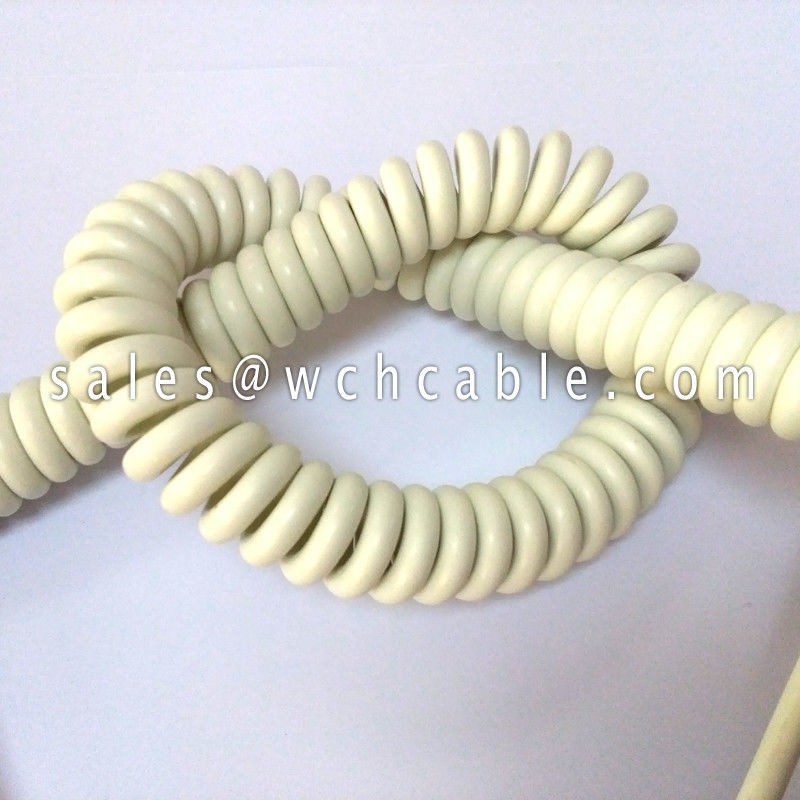

UL20939 India Price China Made Quality Spiral Cable 80C 600V

Name: UL20939 India Price China Made Quality Spiral Cable 80C 600V
Brand: WCH Cable
Price: 0.355 USD

UL20939 India Price China Made Quality Spiral Cable 80C 600V Manufactures

Brand Name : WCH Cable

Model Number : UL20939

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 200 pcs

Price : USD0.355 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 200 pcs per box

Conductor : High purity copper wire

Rated Temperature : 80 Deg C

Insulation : AWM Appliant Material

Rated Voltage : 600V

Jacket Material : Thermoplastic Polyurethane TPU

Working Standard : UL758, UL20939

Contact Now

UL20939 India Price China Made Quality Spiral Cable 80C 600V

Conductor: High purity copper wire, tinned or bare, stranded or solid.
Insulation: Quality materials complying with AWM standard.
Screen Shield: Foil, spiral shield, copper braiding, optional.
Jacket: Thermoplastic Polyurethane TPU
Standard: Appliance Wiring Material UL758.
Rated Temperature: 80 deg C.
Rated Voltage: 600V.
Flammability: UL VW-1 passed.
Uniform insulation thickness for smooth stripping.
Other approvals: Cul, CSA / Canadian Standards Association.
Application: Internal wiring & external wiring of electronic appliances.
Outstanding Feature: Very excellent quality & long flex life.

Style Number	Core Quantity	Copper Conductor		Insulation Thickness	Insulation Diameter	Jacket Thickness	Overall Diameter	Conductor Resistance
Style Number	Core Quantity	AWG	No/mm	mm	mm	mm	mm	Ω/KM
UL20939	2C	30	7/0.100	0.76	1.90	0.76	6.00	381.00
	2C	28	7/0.127	0.76	2.00	0.76	6.30	239.00
	2C	26	7/0.16	0.76	2.10	0.76	6.40	150.00
	2C	24	11/0.16	0.76	2.20	0.76	6.60	94.20
	2C	22	17/0.16	0.76	2.40	0.76	7.00	59.40
	2C	20	21/0.178	0.76	2.50	0.76	7.40	36.70
	2C	18	34/0.178	0.76	2.80	0.76	8.00	23.20
	2C	16	26/0.25	0.76	3.10	0.76	10.20	14.60
	3C	30	7/0.100	0.76	1.90	0.76	7.90	381.00
	3C	28	7/0.127	0.76	2.00	0.76	8.10	239.00
	3C	26	7/0.16	0.76	2.10	0.76	8.30	150.00
	3C	24	11/0.16	0.76	2.20	0.76	8.50	94.20
	3C	22	17/0.16	0.76	2.40	0.76	8.90	59.40
	3C	20	21/0.178	0.76	2.50	0.76	9.40	36.70
	3C	18	34/0.178	0.76	2.80	0.76	10.00	23.20
	4C	30	7/0.100	0.76	1.90	0.76	8.10	381.00
	4C	28	7/0.127	0.76	2.00	0.76	8.30	239.00
	4C	26	7/0.16	0.76	2.10	0.76	8.60	150.00
	4C	24	11/0.16	0.76	2.20	0.76	8.90	94.20
	4C	22	17/0.16	0.76	2.40	0.76	9.30	59.40
	4C	20	21/0.178	0.76	2.50	0.76	9.80	36.70
	5C	30	7/0.100	0.76	1.90	0.76	8.40	381.00
	5C	28	7/0.127	0.76	2.00	0.76	8.70	239.00
	5C	26	7/0.16	0.76	2.10	0.76	8.80	150.00
	5C	24	11/0.16	0.76	2.20	0.76	9.20	94.20
	5C	22	17/0.16	0.76	2.40	0.76	9.80	59.40
	6C	30	7/0.100	0.76	1.90	0.76	8.80	381.00
	6C	28	7/0.127	0.76	2.00	0.76	9.10	239.00
	6C	26	7/0.16	0.76	2.10	0.76	9.40	150.00
	6C	24	11/0.16	0.76	2.20	0.76	9.70	94.20

UL20939 India Price China Made Quality Spiral Cable 80C 600V

UL20939 India Price China Made Quality Spiral Cable 80C 600V

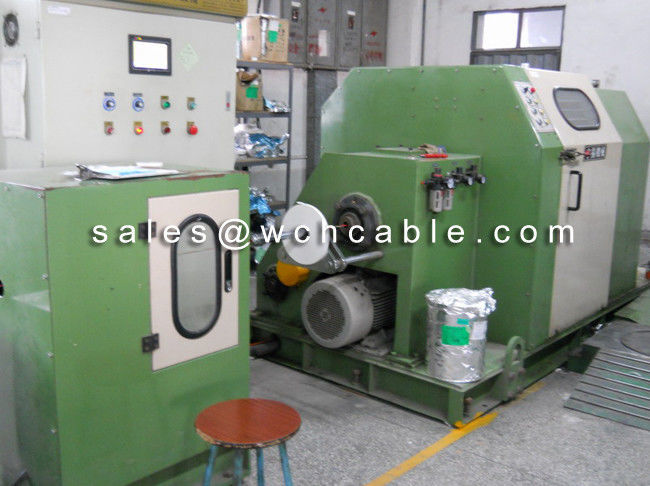

Spiral coiling process production line:

UL20939 India Price China Made Quality Spiral Cable 80C 600V

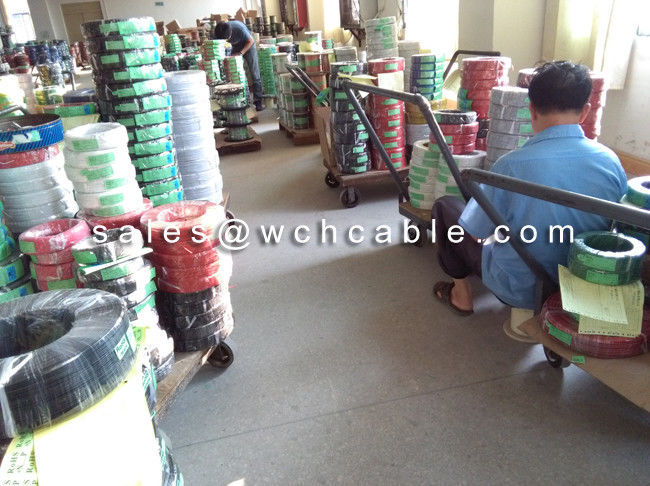

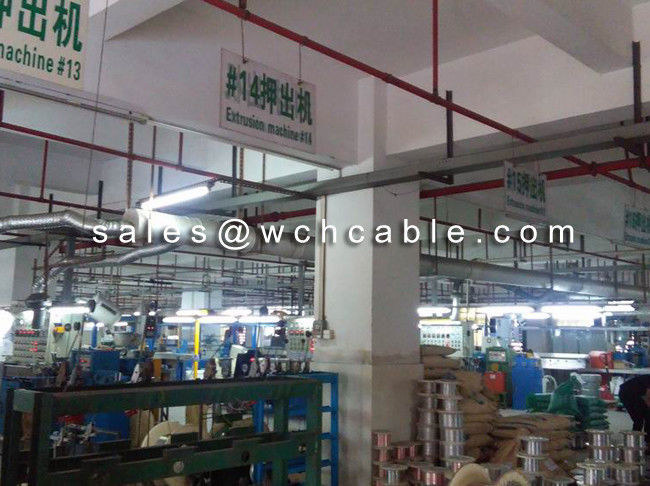

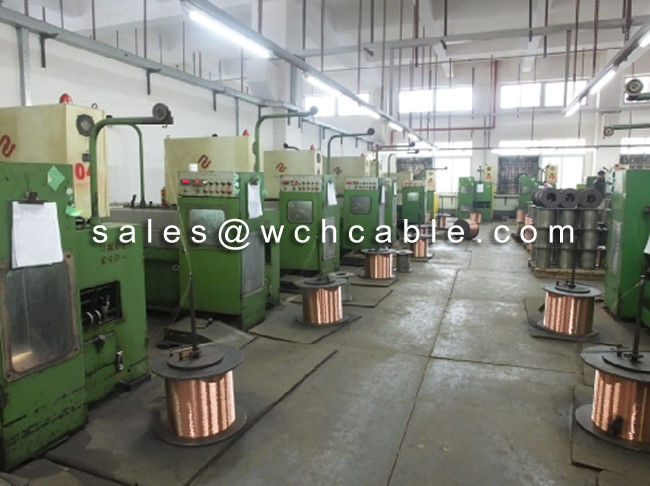

The raw cable manufacture is also managed at the same production facilities of WCH Cable.

UL20939 India Price China Made Quality Spiral Cable 80C 600V

Tag: UL20939, spiral cable
