UL21329 Tailored Yellow Retractable Spiral Curly Cable 80C 600V

Name: UL21329 Tailored Yellow Retractable Spiral Curly Cable 80C 600V
Brand: WCH Cable
Price: 0.352 USD

UL21329 Tailored Yellow Retractable Spiral Curly Cable 80C 600V Manufactures

Brand Name : WCH Cable

Model Number : UL21329

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 200 pcs

Price : USD0.352 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 200 pcs per box

Conductor : High purity copper wire

Rated Temperature : 80 Deg C

Insulation : AWM Appliant Material

Rated Voltage : 600V

Jacket Material : Thermoplastic Polyurethane TPU

Standard : UL758, UL21329

Contact Now

Feature of UL21329 Tailored Yellow Retractable Spiral Curly Cable 80C 600V

Conductor: High purity copper wire, tinned or bare, stranded or solid.
Insulation: Quality materials complying with AWM standard.
Screen Shield: Foil, spiral shield, copper braiding, optional.
Jacket: Thermoplastic Polyurethane TPU
Standard: Appliance Wiring Material UL758.
Rated Temperature: 80 deg C.
Rated Voltage: 600V.
Flammability: UL VW-1 passed.
Uniform insulation thickness for smooth stripping.
Other approvals: Cul, CSA / Canadian Standards Association.
Application: Internal wiring & external wiring of electronic appliances.
Outstanding Feature: Halogen free materials, & Reach compliant.

Parameters of UL21329 Tailored Yellow Retractable Spiral Curly Cable 80C 600V

Style Number	Core Quantity	Copper Conductor		Insulation Thickness	Insulation Diameter	Jacket Thickness	Overall Diameter	Conductor Resistance
Style Number	Core Quantity	AWG	No/mm	mm	mm	mm	mm	Ω/KM
UL21329	2C	30	7/0.100	0.76	1.90	0.38	5.80	381.00
	2C	28	7/0.127	0.76	2.00	0.38	6.10	239.00
	2C	26	7/0.16	0.76	2.10	0.38	6.20	150.00
	2C	24	11/0.16	0.76	2.20	0.38	6.40	94.20
	2C	22	17/0.16	0.76	2.40	0.38	6.80	59.40
	2C	20	21/0.178	0.76	2.50	0.38	7.20	36.70
	2C	18	34/0.178	0.76	2.80	0.38	7.80	23.20
	2C	16	26/0.25	0.76	3.10	0.38	10.00	14.60
	3C	30	7/0.100	0.76	1.90	0.38	7.70	381.00
	3C	28	7/0.127	0.76	2.00	0.38	7.90	239.00
	3C	26	7/0.16	0.76	2.10	0.38	8.10	150.00
	3C	24	11/0.16	0.76	2.20	0.38	8.30	94.20
	3C	22	17/0.16	0.76	2.40	0.38	8.70	59.40
	3C	20	21/0.178	0.76	2.50	0.38	9.20	36.70
	3C	18	34/0.178	0.76	2.80	0.38	9.80	23.20
	4C	30	7/0.100	0.76	1.90	0.38	7.90	381.00
	4C	28	7/0.127	0.76	2.00	0.38	8.10	239.00
	4C	26	7/0.16	0.76	2.10	0.38	8.40	150.00
	4C	24	11/0.16	0.76	2.20	0.38	8.70	94.20
	4C	22	17/0.16	0.76	2.40	0.38	9.10	59.40
	4C	20	21/0.178	0.76	2.50	0.38	9.70	36.70
	5C	30	7/0.100	0.76	1.90	0.38	8.20	381.00
	5C	28	7/0.127	0.76	2.00	0.38	8.50	239.00
	5C	26	7/0.16	0.76	2.10	0.38	8.60	150.00
	5C	24	11/0.16	0.76	2.20	0.38	9.00	94.20
	5C	22	17/0.16	0.76	2.40	0.38	9.60	59.40
	6C	30	7/0.100	0.76	1.90	0.38	8.60	381.00
	6C	28	7/0.127	0.76	2.00	0.38	8.90	239.00
	6C	26	7/0.16	0.76	2.10	0.38	9.20	150.00
	6C	24	11/0.16	0.76	2.20	0.38	9.50	94.20

UL21329 Tailored Yellow Retractable Spiral Curly Cable 80C 600V

tag: UL21329

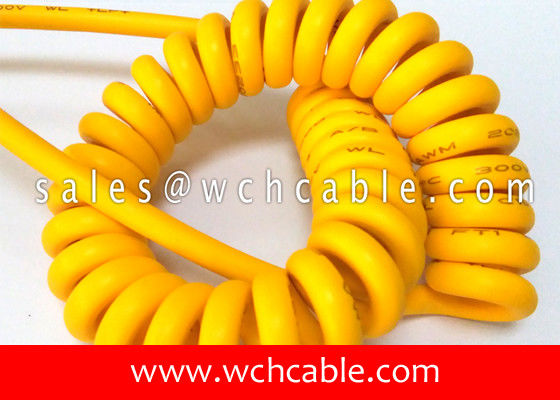

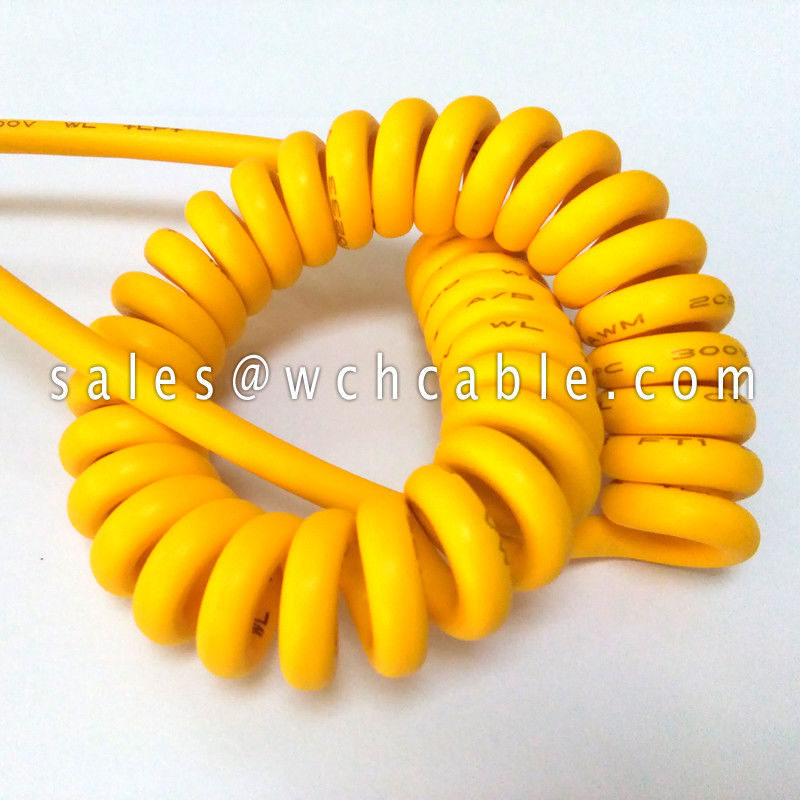

UL21329 Tailored Yellow Retractable Spiral Curly Cable 80C 600V Images
