TPEE Insulated Spring Cable

Name: TPEE Insulated Spring Cable
Brand: WCH Cable
Price: 0.253 USD

TPEE Insulated Spring Cable Manufactures

Brand Name : WCH Cable

Model Number : Ul2562

Certification : UL/Cul Certificate

Place of Origin : Dongguan, China

MOQ : 200pcs

Price : USD0.253 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 200pcs per carton

Copper : High purity Copper Wire

Rated Temperature : 120 Deg C

Insulation : AWM Compliant Materials

Rated Voltage : 150V

Jacket : Hytrel Materials

Standard : UL758

Contact Now

Feature of TPEE Insulated Spring Cable

Standard: Appliance Wiring Material UL758.
Rated Temperature: 120 deg C.
Rated Voltage: 150V.
Flammability: UL VW-1 passed.
Uniform insulation thickness for smooth stripping.
Other approvals: Cul, CSA / Canadian Standards Association.
Application: Internal & External wiring.

Parameters of TPEE Insulated Spring Cable

Part Number	Specification	Conductor Strands	Jacket Thickness	Overall Diameter (mm)
Ul22641	30 AWG x 2 Cores	26/0.05	35 mils / 0.89mm	3.80
Ul22642	28 AWG x 2 Cores	41/0.05	35 mils / 0.89mm	4.10
Ul22643	26 AWG x 2 Cores	66/0.05	35 mils / 0.89mm	4.30
Ul22644	24 AWG x 2 Cores	105/0.05	35 mils / 0.89mm	4.40
Ul22645	22 AWG x 2 Cores	165/0.05	35 mils / 0.89mm	4.80
Ul22646	20 AWG x 2 Cores	265/0.05	35 mils / 0.89mm	5.20
Ul22647	18 AWG x 2 Cores	164/0.08	35 mils / 0.89mm	5.80
Ul22648	16 AWG x 2 Cores	265/0.08	35 mils / 0.89mm	8.00
Ul22649	30 AWG x 3 Cores	26/0.05	35 mils / 0.89mm	5.70
Ul22650	28 AWG x 3 Cores	41/0.05	35 mils / 0.89mm	5.90
Ul22651	26 AWG x 3 Cores	66/0.05	35 mils / 0.89mm	6.10
Ul22652	24 AWG x 3 Cores	105/0.05	35 mils / 0.89mm	6.30
Ul22653	22 AWG x 3 Cores	165/0.05	35 mils / 0.89mm	6.70
Ul22654	20 AWG x 3 Cores	265/0.05	35 mils / 0.89mm	7.20
Ul22655	18 AWG x 3 Cores	164/0.08	35 mils / 0.89mm	7.80
Ul22656	30 AWG x 4 Cores	26/0.05	35 mils / 0.89mm	5.90
Ul22657	28 AWG x 4 Cores	41/0.05	35 mils / 0.89mm	6.10
Ul22658	26 AWG x 4 Cores	66/0.05	35 mils / 0.89mm	6.40
Ul22659	24 AWG x 4 Cores	105/0.05	35 mils / 0.89mm	6.70
Ul22660	22 AWG x 4 Cores	165/0.05	35 mils / 0.89mm	7.10
Ul22661	20 AWG x 4 Cores	265/0.05	35 mils / 0.89mm	7.60
Ul22662	30 AWG x 5 Cores	26/0.05	35 mils / 0.89mm	6.20
Ul22663	28 AWG x 5 Cores	41/0.05	35 mils / 0.89mm	6.50
Ul22664	26 AWG x 5 Cores	66/0.05	35 mils / 0.89mm	6.60
Ul22665	24 AWG x 5 Cores	105/0.05	35 mils / 0.89mm	7.00
Ul22666	22 AWG x 5 Cores	165/0.05	35 mils / 0.89mm	7.60
Ul22667	30 AWG x 6 Cores	26/0.05	35 mils / 0.89mm	6.60
Ul22668	28 AWG x 6 Cores	41/0.05	35 mils / 0.89mm	6.90
Ul22669	26 AWG x 6 Cores	66/0.05	35 mils / 0.89mm	7.20
Ul22670	24 AWG x 6 Cores	105/0.05	35 mils / 0.89mm	7.50

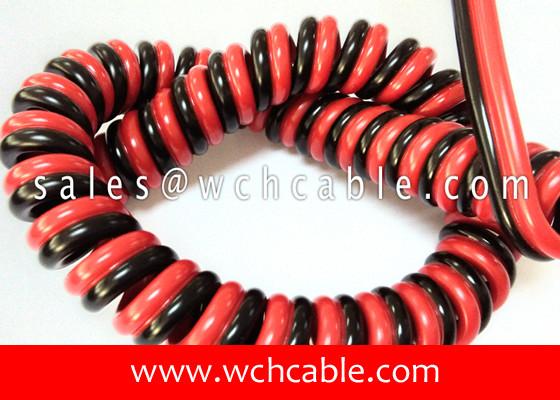

TPEE Insulated Spring Cable

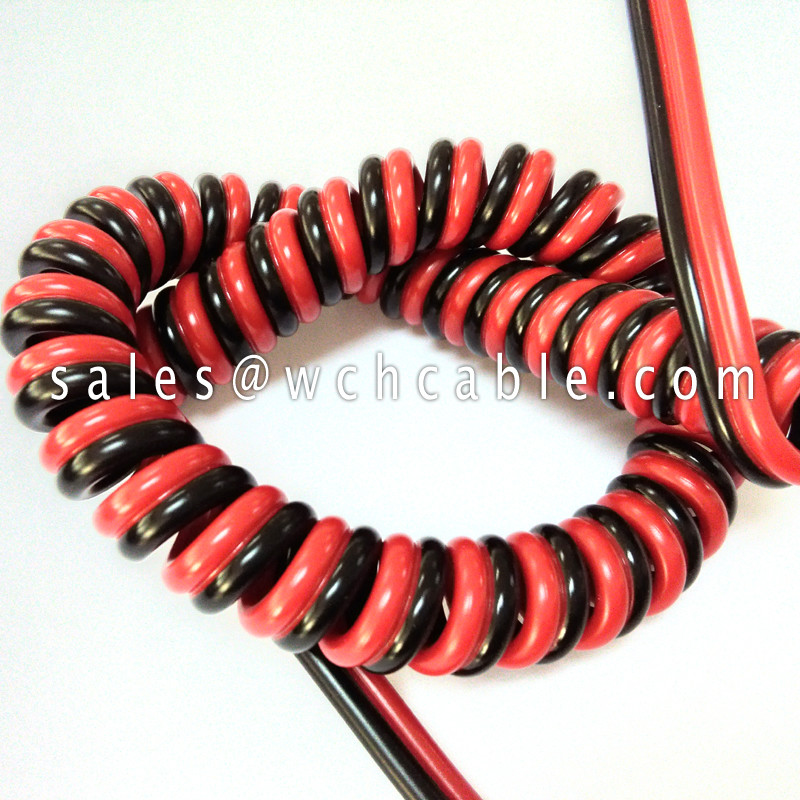

TPEE Insulated Spring Cable Images
