UL Approved Factory Direct Supply Spring Cable

Name: UL Approved Factory Direct Supply Spring Cable
Brand: WCH Cable
Price: 0.55 USD

UL Approved Factory Direct Supply Spring Cable Manufactures

Brand Name : WCH Cable

Model Number : WCH85001

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 200pcs

Price : USD 0.55 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 200pcs per carton

Copper : High purity copper wire

Rated Temperature : 80 deg C

Rated Voltage : 300V

Applied Standard : UL758

Insulation : AWM compliant material

Jacket : Polyurethane TPU

Contact Now

UL Approved Factory Direct Supply Spring Cable

Conductor: High Purity Annealed Tinned Stranded Copper Wire
Insulation: PP / Polypropylene
Jacket: TPU / Polyurethane
Rated Temperature: 80 Deg C
Rated Voltage: 300V
Applied Standard: UL758

Parameters of Factory Direct Supply Spring Cable

Part Number	Specification	Conductor Strands	Wire Diameter (mm)	Overall Diameter (mm)
Ul21741	30 AWG x 2 Cores	7/0.10	0.80	3.60
Ul21742	28 AWG x 2 Cores	9/0.11	0.90	3.90
Ul21743	26 AWG x 2 Cores	14/0.11	1.00	4.00
Ul21744	24 AWG x 2 Cores	22/0.11	1.10	4.20
Ul21745	22 AWG x 2 Cores	35/0.11	1.30	4.60
Ul21746	20 AWG x 2 Cores	55/0.11	1.50	5.00
Ul21747	18 AWG x 2 Cores	87/0.11	1.80	5.60
Ul21748	16 AWG x 2 Cores	138/0.11	2.00	7.80
Ul21749	30 AWG x 3 Cores	7/0.10	0.80	5.50
Ul21750	28 AWG x 3 Cores	9/0.11	0.90	5.70
Ul21751	26 AWG x 3 Cores	14/0.11	1.00	5.90
Ul21752	24 AWG x 3 Cores	22/0.11	1.10	6.10
Ul21753	22 AWG x 3 Cores	35/0.11	1.30	6.50
Ul21754	20 AWG x 3 Cores	55/0.11	1.50	7.00
Ul21755	18 AWG x 3 Cores	87/0.11	1.80	7.60
Ul21756	30 AWG x 4 Cores	7/0.10	0.80	5.70
Ul21757	28 AWG x 4 Cores	9/0.11	0.90	5.90
Ul21758	26 AWG x 4 Cores	14/0.11	1.00	6.20
Ul21759	24 AWG x 4 Cores	22/0.11	1.10	6.50
Ul21760	22 AWG x 4 Cores	35/0.11	1.30	6.90
Ul21761	20 AWG x 4 Cores	55/0.11	1.50	7.40
Ul21762	30 AWG x 5 Cores	7/0.10	0.80	6.00
Ul21763	28 AWG x 5 Cores	9/0.11	0.90	6.30
Ul21764	26 AWG x 5 Cores	14/0.11	1.00	6.40
Ul21765	24 AWG x 5 Cores	22/0.11	1.10	6.80
Ul21766	22 AWG x 5 Cores	35/0.11	1.30	7.40
Ul21767	30 AWG x 6 Cores	7/0.10	0.80	6.40
Ul21768	28 AWG x 6 Cores	9/0.11	0.90	6.70
Ul21769	26 AWG x 6 Cores	14/0.11	1.00	7.00
Ul21770	24 AWG x 6 Cores	22/0.11	1.10	7.30

UL Approved Factory Direct Supply Spring Cable

Tag: cable, spring cable

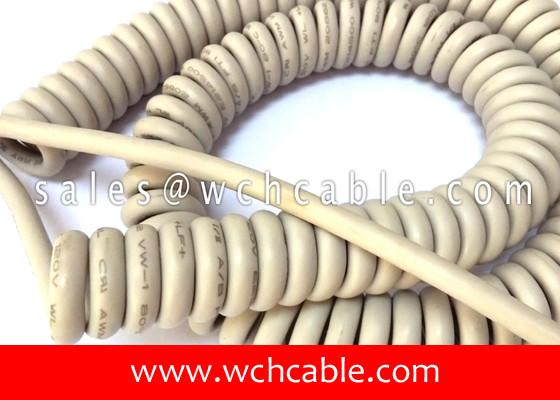

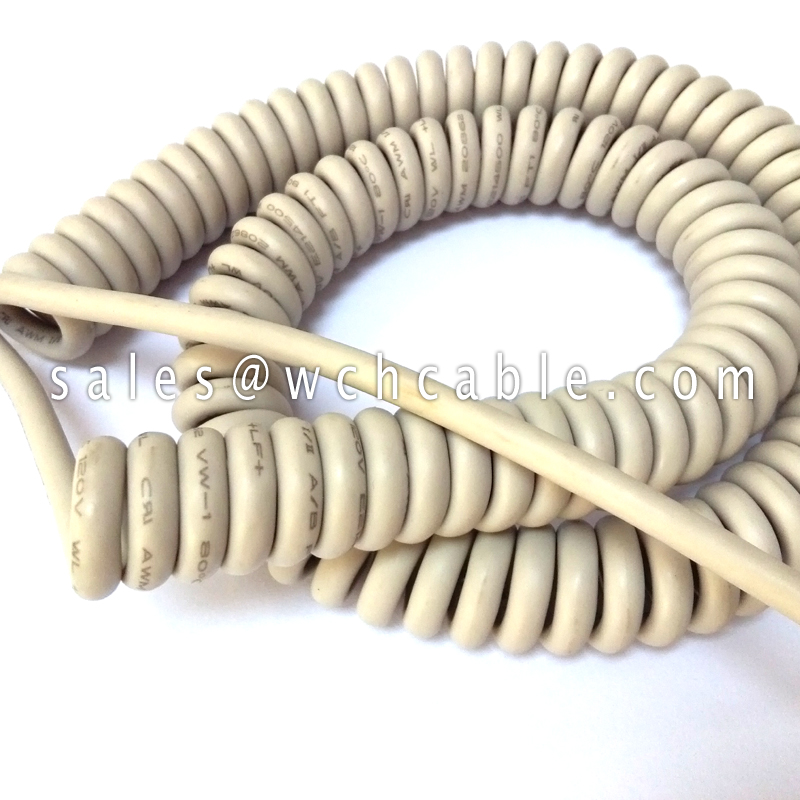

UL Approved Factory Direct Supply Spring Cable Images
