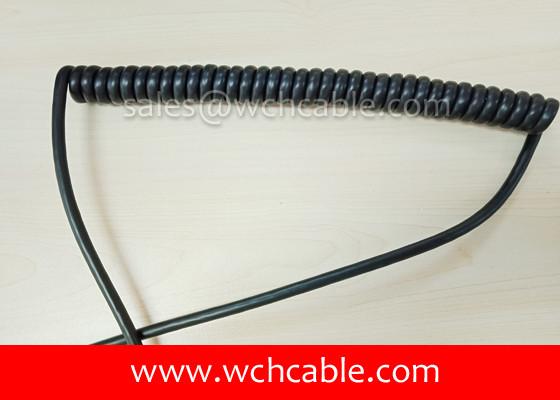

UL21322 Health Detector Spring Cable

Brand Name : WCH Cable

Model Number : UL21322

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 200 pcs per box

Price : USD 0.122 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000 pcs

Delivery Time : 9 days for ready goods

Packaging Details : 200 pcs per box

Style Number : UL21322

Feature : Easy working

Conductor Material : Pure Copper Wire

UL Style : Optional

Conductor Gauge : 10-32AWG

Application : health detector Use

Rated Voltage : 90V

Type : Spring Cable

Contact Now

UL21322 Health Detector Spring Cable

Rating: 60 deg C, 90 Vac

Conductor Size: 10-32AWG

Conductor Quantity: 2 ~ 50 cores

Insulation Material: Polypropylene PP

Jacket Material: Thermoplastic TPU.

Executed Standard: Appliance Wiring Material UL758.

Application: health detector connect purpose.

Style Number Conductor Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21322 3C 28 7/0.127 0.23 0.90 0.381 3.20 239.00
3C 26 7/0.16 0.23 1.00 0.381 3.42 150.00
3C 24 11/0.16 0.23 1.10 0.381 3.63 94.20
3C 22 17/0.16 0.23 1.30 0.381 4.06 59.40
3C 20 21/0.178 0.23 1.50 0.381 4.49 36.70
3C 18 34/0.178 0.23 1.70 0.381 4.93 23.20
3C 16 26/0.254 0.23 2.10 0.381 5.79 14.60
4C 28 7/0.127 0.23 0.90 0.381 3.43 239.00
4C 26 7/0.16 0.23 1.00 0.381 3.68 150.00
4C 24 11/0.16 0.23 1.10 0.381 3.92 94.20
4C 22 17/0.16 0.23 1.30 0.381 4.40 59.40
4C 20 21/0.178 0.23 1.50 0.381 4.88 36.70
4C 18 34/0.178 0.23 1.70 0.381 5.37 23.20
4C 16 26/0.254 0.23 2.10 0.381 6.33 14.60
5C 28 7/0.127 0.23 0.90 0.381 3.69 239.00
5C 26 7/0.16 0.23 1.00 0.381 3.96 150.00
5C 24 11/0.16 0.23 1.10 0.381 4.23 94.20
5C 22 17/0.16 0.23 1.30 0.381 4.77 59.40
5C 20 21/0.178 0.23 1.50 0.381 5.31 36.70
5C 18 34/0.178 0.23 1.70 0.381 5.85 23.20
5C 16 26/0.254 0.23 2.10 0.381 6.93 14.60
6C 28 7/0.127 0.23 0.90 0.381 3.96 239.00
6C 26 7/0.16 0.23 1.00 0.381 4.26 150.00
6C 24 11/0.16 0.23 1.10 0.381 4.56 94.20
6C 22 17/0.16 0.23 1.30 0.381 5.16 59.40
6C 20 21/0.178 0.23 1.50 0.381 5.76 36.70
6C 18 34/0.178 0.23 1.70 0.381 6.36 23.20
6C 16 26/0.254 0.23 2.10 0.381 7.56 14.60
7C 28 7/0.127 0.23 0.90 0.381 4.01 239.00
7C 26 7/0.16 0.23 1.00 0.381 4.32 150.00
7C 24 11/0.16 0.23 1.10 0.381 4.62 94.20
7C 22 17/0.16 0.23 1.30 0.381 5.23 59.40
7C 20 21/0.178 0.23 1.50 0.381 5.85 36.70
7C 18 34/0.178 0.23 1.70 0.381 6.46 23.20
7C 16 26/0.254 0.23 2.10 0.381 7.68 14.60
8C 28 7/0.127 0.23 0.90 0.381 4.20 239.00
8C 26 7/0.16 0.23 1.00 0.381 4.53 150.00
8C 24 11/0.16 0.23 1.10 0.381 4.86 94.20
8C 22 17/0.16 0.23 1.30 0.381 5.51 59.40
8C 20 21/0.178 0.23 1.50 0.381 6.16 36.70
8C 18 34/0.178 0.23 1.70 0.381 6.82 23.20
9C 28 7/0.127 0.23 0.90 0.381 4.38 239.00
9C 26 7/0.16 0.23 1.00 0.381 4.73 150.00
9C 24 11/0.16 0.23 1.10 0.381 5.07 94.20
9C 22 17/0.16 0.23 1.30 0.381 5.77 59.40
9C 20 21/0.178 0.23 1.50 0.381 6.46 36.70

UL21322 Health Detector Spring Cable
