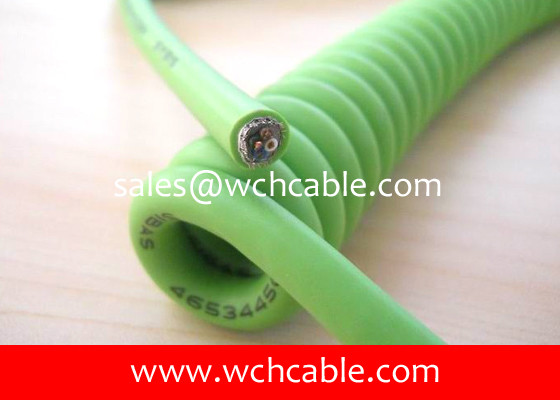

UL21029 Aerospace Applied Spiral Cable PUR Jacket Rated 80C 600V

Brand Name : WCH Cable

Model Number : UL21029

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 200pcs

Price : USD 0.121 per piece

Payment Terms : D/P, T/T, L/C, D/A, Western Union, MoneyGram

Supply Ability : 15,000pcs weekly

Delivery Time : 9 days for ready goods

Packaging Details : 200pcs per carton box

Style Number : UL21029

Application : Aerospace Connect

Rated Voltage : 600V

Conductor : Extremely High Purity Copper

Rated Temperature : 60, 80C Degrees

Insulation : AWM Material

FR Grade : VW-1

Jacket : Polyurethane PUR

Contact Now

UL21029 Aerospace Applied Spiral Cable PUR Jacket Rated 80C 600V

Approval Style Number: UL21029

Application: aerospace connect.

Conductor: highly pure copper strands.

Insulation: AWM compliant material.

Sheathed material: quality polyurethane PUR.

Rated: 60, 80C Degrees, 600V.

Feature: high flexibility, excellent resilience.

Style Number Core Quantity Copper Conductor Insulation Thickness Insulation Diameter Shield Coverage Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm % mm mm Ω/KM
UL21029 2C 30 7/0.100 0.76 1.90 ≥65 0.76 6.00 381.00
2C 28 7/0.127 0.76 2.00 ≥65 0.76 6.30 239.00
2C 26 7/0.16 0.76 2.10 ≥65 0.76 6.40 150.00
2C 24 11/0.16 0.76 2.20 ≥65 0.76 6.60 94.20
2C 22 17/0.16 0.76 2.40 ≥65 0.76 7.00 59.40
2C 20 21/0.178 0.76 2.50 ≥65 0.76 7.40 36.70
2C 18 34/0.178 0.76 2.80 ≥65 0.76 8.00 23.20
2C 16 26/0.25 0.76 3.10 ≥65 0.76 10.20 14.60
3C 30 7/0.100 0.76 1.90 ≥65 0.76 7.90 381.00
3C 28 7/0.127 0.76 2.00 ≥65 0.76 8.10 239.00
3C 26 7/0.16 0.76 2.10 ≥65 0.76 8.30 150.00
3C 24 11/0.16 0.76 2.20 ≥65 0.76 8.50 94.20
3C 22 17/0.16 0.76 2.40 ≥65 0.76 8.90 59.40
3C 20 21/0.178 0.76 2.50 ≥65 0.76 9.40 36.70
3C 18 34/0.178 0.76 2.80 ≥65 0.76 10.00 23.20
4C 30 7/0.100 0.76 1.90 ≥65 0.76 8.10 381.00
4C 28 7/0.127 0.76 2.00 ≥65 0.76 8.30 239.00
4C 26 7/0.16 0.76 2.10 ≥65 0.76 8.60 150.00
4C 24 11/0.16 0.76 2.20 ≥65 0.76 8.90 94.20
4C 22 17/0.16 0.76 2.40 ≥65 0.76 9.30 59.40
4C 20 21/0.178 0.76 2.50 ≥65 0.76 9.80 36.70
5C 30 7/0.100 0.76 1.90 ≥65 0.76 8.40 381.00
5C 28 7/0.127 0.76 2.00 ≥65 0.76 8.70 239.00
5C 26 7/0.16 0.76 2.10 ≥65 0.76 8.80 150.00
5C 24 11/0.16 0.76 2.20 ≥65 0.76 9.20 94.20
5C 22 17/0.16 0.76 2.40 ≥65 0.76 9.80 59.40
6C 30 7/0.100 0.76 1.90 ≥65 0.76 8.80 381.00
6C 28 7/0.127 0.76 2.00 ≥65 0.76 9.10 239.00
6C 26 7/0.16 0.76 2.10 ≥65 0.76 9.40 150.00
6C 24 11/0.16 0.76 2.20 ≥65 0.76 9.70 94.20

UL21029 Aerospace Applied Spiral Cable PUR Jacket Rated 80C 600V

Style Number: UL21029
Rated Grade: 60, 80 deg C, 600 Vac, Cable flame.
Conductor: Above 99.99% High purity copper wires
Screen Shield: Optional
Jacket: Extruded Polyurethane PUR
Average thickness: 30 mils (Ref.)
Minimum thickness: 24 mils (Ref.)
Specification: Detailed specification is to be customized per customer's requirement.
Executed Standard: Appliance Wiring Material UL 758.
Application: Internal wiring and external interconnection of electronic equipment and appliances.
Manufacturer: WCH Cable Industrial Co., Ltd.
Manufacture Location: Dongguan, Guangdong, China
Other Name of the Cable: UL Cable, PUR Cable, China Cable, Power Cable, UL21029 Cable

UL21029 Aerospace Applied Spiral Cable PUR Jacket Rated 80C 600V

Tag: spiral cable, pur spiral cable, ul21029
