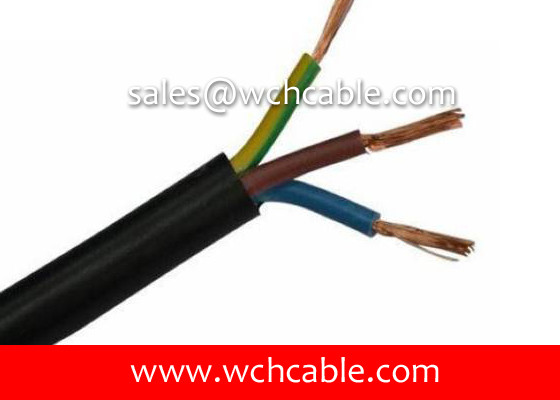

UL20411 Electrical Cabinet Cable PUR Sheath Rated 60C 150V

Brand Name : WCH Cable

Model Number : UL20411

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD 0.145 per meter

Payment Terms : D/P, T/T, L/C, D/A, Western Union, MoneyGram

Supply Ability : 3,000,000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel or spool

Style Number : UL20411

Application : Electrical Cabinet Interconnection

Rated Voltage : 150V

Conductor : Extremely High Purity Copper

Rated Temperature : 60C Degrees

Insulation : AWM Complied Materials

Flammability : VW-1, FT1, FT2

Sheath : Polyurethane PUR

Contact Now

UL20411 Electrical Cabinet Cable PUR Sheath Rated 60C 150V

Approval Style Number: UL20411

Application: electrical cabinet connection.

Sheathed material: quality polyurethane pur

Rated: 60C Degrees, 150V

Style Number Conductor Quantity Conductor Structure Insulation Thickness Insulation Diameter Shield Coverage Jacket Thickness Overall Diameter Conductor Resistanct
AWG No/mm mm mm % mm mm Ω/KM
UL20411 2C 30 7/0.100 0.23 0.80 ≥65 0.76 3.20 381
2C 28 7/0.127 0.23 0.90 ≥65 0.76 3.40 239
2C 26 7/0.16 0.23 1.00 ≥65 0.76 3.60 150
2C 24 11/0.16 0.23 1.10 ≥65 0.76 3.80 94.2
2C 22 17/0.16 0.23 1.30 ≥65 0.76 4.20 59.4
2C 20 21/0.178 0.23 1.50 ≥65 0.76 4.60 36.7
2C 18 34/0.178 0.23 1.80 ≥65 0.76 5.20 23.2
2C 16 26/0.25 0.23 2.10 ≥65 0.76 5.80 14.6
3C 30 7/0.100 0.23 0.80 ≥65 0.76 3.40 381
3C 28 7/0.127 0.23 0.90 ≥65 0.76 3.50 239
3C 26 7/0.16 0.23 1.00 ≥65 0.76 3.80 150
3C 24 11/0.16 0.23 1.10 ≥65 0.76 4.00 94.2
3C 22 17/0.16 0.23 1.30 ≥65 0.76 4.40 59.4
3C 20 21/0.178 0.23 1.50 ≥65 0.76 4.80 36.7
3C 18 34/0.178 0.23 1.80 ≥65 0.76 5.50 23.2
4C 30 7/0.100 0.23 0.80 ≥65 0.76 4.80 381
4C 28 7/0.127 0.23 0.90 ≥65 0.76 5.10 239
4C 26 7/0.16 0.23 1.00 ≥65 0.76 5.30 150
4C 24 11/0.16 0.23 1.10 ≥65 0.76 5.50 94.2
4C 22 17/0.16 0.23 1.30 ≥65 0.76 6.00 59.4
4C 20 21/0.178 0.23 1.50 ≥65 0.76 6.50 36.7
5C 30 7/0.100 0.23 0.80 ≥65 0.76 5.00 381
5C 28 7/0.127 0.23 0.90 ≥65 0.76 5.30 239
5C 26 7/0.16 0.23 1.00 ≥65 0.76 5.60 150
5C 24 11/0.16 0.23 1.10 ≥65 0.76 5.80 94.2
5C 22 17/0.16 0.23 1.30 ≥65 0.76 6.40 59.4
6C 30 7/0.100 0.23 0.80 ≥65 0.76 5.30 381
6C 28 7/0.127 0.23 0.90 ≥65 0.76 5.60 239
6C 26 7/0.16 0.23 1.00 ≥65 0.76 5.90 150
6C 24 11/0.16 0.23 1.10 ≥65 0.76 6.20 94.2

UL20411 Electrical Cabinet Cable PUR Sheath Rated 60C 150V

Style Number: UL20411
Rated Grade: 60 deg C, 150 Vac, Cable flame.
Conductor: Above 99.99% High purity copper wires
Screen Shield: Optional
Jacket: Extruded Polyurethane PUR
Average thickness: 30 mils (Ref.)
Minimum thickness: 24 mils (Ref.)
Specification: Detailed specification is to be customized per customer's requirement.
Executed Standard: Appliance Wiring Material UL 758.
Application: Internal wiring and external interconnection of electronic equipment and appliances.
Manufacturer: WCH Cable Industrial Co., Ltd.
Manufacture Location: Dongguan, Guangdong, China
Other Name of the Cable: UL Cable, PUR Cable, Medical Cable, Hospital Cable, UL20411 Cable

UL20411 Electrical Cabinet Cable PUR Sheath Rated 60C 150V

Tag: medical cable, pur cable, curl cord
