UL21918 Lighting Systems Spiral Cable 125C 300V

Name: UL21918 Lighting Systems Spiral Cable 125C 300V
Brand: WCH Cable
Price: 0.255 USD

Brand Name : WCH Cable

Model Number : UL21918

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 200 pcs

Price : USD0.255 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 200 pcs per box

Conductor : High purity copper wire

Rated Temperature : 125 Deg C

Insulation : AWM Appliant Material

Rated Voltage : 300V

Jacket Material : Thermoplastic Elastomer TPE

Executed Standard : UL758, UL21918

Application : Lighting Systems

Style Number : UL21918

Contact Now

UL21918 Lighting Systems Spiral Cable 125C 300V

Conductor: High purity copper wire, tinned or bare, stranded or solid.
Insulation: Quality materials complying with AWM standard.
Screen Shield: Foil, spiral shield, copper braiding, optional.
Jacket Material: Thermoplastic Elastomer TPE.
Standard: Appliance Wiring Material UL758.
Rated Temperature: 125 deg C.
Rated Voltage: 300V.
Flammability: UL VW-1, CUL FT1, FT2 passed.
Uniform insulation thickness for smooth stripping.
Other approvals: Cul, CSA / Canadian Standards Association.
Application: Industrial Computing.
Origin: Dongguan, China.

Style Number	Core Quantity	Conductor Size	Conductor Strands	Insulation Thickness	Insulation Diameter	Jacket Thickness	Overall Diameter	Conductor Resistance
Style Number	Core Quantity	AWG	No/mm	mm	mm	mm	mm	Ω/KM
UL21918	2C	30	7/0.100	0.23	0.80	0.76	3.20	381.00
	2C	28	7/0.127	0.23	0.90	0.76	3.40	239.00
	2C	26	7/0.16	0.23	1.00	0.76	3.60	150.00
	2C	24	11/0.16	0.23	1.10	0.76	3.80	94.20
	2C	22	17/0.16	0.23	1.30	0.76	4.20	59.40
	2C	20	21/0.178	0.23	1.50	0.76	4.60	36.70
	2C	18	34/0.178	0.23	1.80	0.76	5.20	23.20
	2C	16	26/0.25	0.23	2.00	0.76	5.80	14.60
	3C	30	7/0.100	0.23	0.80	0.76	3.40	381.00
	3C	28	7/0.127	0.23	0.90	0.76	3.50	239.00
	3C	26	7/0.16	0.23	1.00	0.76	3.80	150.00
	3C	24	11/0.16	0.23	1.10	0.76	4.00	94.20
	3C	22	17/0.16	0.23	1.30	0.76	4.40	59.40
	3C	20	21/0.178	0.23	1.50	0.76	4.80	36.70
	3C	18	34/0.178	0.23	1.80	0.76	5.50	23.20
	4C	30	7/0.100	0.23	0.80	0.76	4.80	381.00
	4C	28	7/0.127	0.23	0.90	0.76	5.10	239.00
	4C	26	7/0.16	0.23	1.00	0.76	5.30	150.00
	4C	24	11/0.16	0.23	1.10	0.76	5.50	94.20
	4C	22	17/0.16	0.23	1.30	0.76	6.00	59.40
	4C	20	21/0.178	0.23	1.50	0.76	6.50	36.70
	5C	30	7/0.100	0.23	0.80	0.76	5.00	381.00
	5C	28	7/0.127	0.23	0.90	0.76	5.30	239.00
	5C	26	7/0.16	0.23	1.00	0.76	5.60	150.00
	5C	24	11/0.16	0.23	1.10	0.76	5.80	94.20
	5C	22	17/0.16	0.23	1.30	0.76	6.40	59.40
	6C	30	7/0.100	0.23	0.80	0.76	5.30	381.00
	6C	28	7/0.127	0.23	0.90	0.76	5.60	239.00
	6C	26	7/0.16	0.23	1.00	0.76	5.90	150.00
	6C	24	11/0.16	0.23	1.10	0.76	6.20	94.20

UL21918 Lighting Systems Spiral Cable 125C 300V

Tag: UL21918, spiral cable, tpu cable

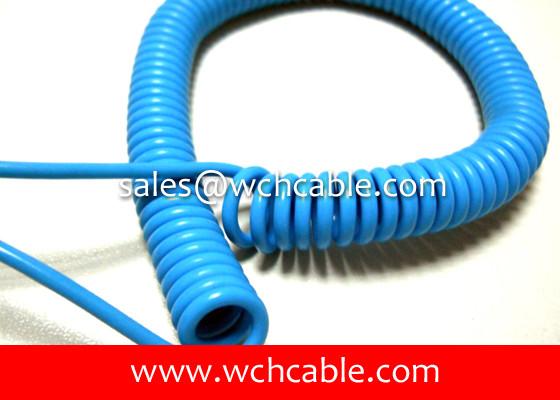

UL21918 Lighting Systems Spiral Cable 125C 300V Images
