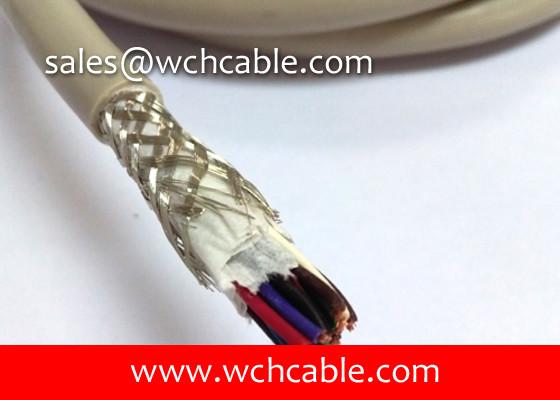

30V Flexible Wiring TPU Cable UV Resistant UL20197, UL20254, UL20350, UL20417

Brand Name : WCH Cable

Model Number : UL20417

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD 0.15 per meter

Payment Terms : D/P, T/T, L/C, D/A, Western Union, MoneyGram

Supply Ability : 300,000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel or spool

Feature : UV Resistant

Sheath Material : TPU

Rated Voltage : 30V

Style Number1 : UL20197, UL20254

Rated Temperature : 60C Degrees

Style Number2 : UL20350, UL20417

Contact Now

UL Cable Style: Multiple-conductor cable using non-integral extruded jacket.

Jacket Type: PUR, TPU.

Standard: Appliance Wiring Material UL 758.

Rated: 60 deg C, 30 Vac, Cable flame.

Application: External wiring.

Available UL Approval Style Numbers of 30V Flexible Wiring UV Resistant TPU Cable:

Style# Temperature Voltage Sheath Material Type Brand
UL 20197 60 30 Thermoplastic Polyurethane PU / PUR / TPU WCH Cable
UL 20254 60 30 Thermoplastic Polyurethane PU / PUR / TPU WCH Cable
UL 20350 60 30 Thermoplastic Polyurethane PU / PUR / TPU WCH Cable
UL 20417 60 30 Thermoplastic Polyurethane PU / PUR / TPU WCH Cable

Parameters of 30V Flexible Wiring UV Resistant TPU Cable:

Approval Style Number Cores Conductor Insulation
Thickness		 Nom.Dia Shield Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
UL20417 2C 30 7/0.100 0.23 0.80 >=65 0.76 3.20 381.00
28 7/0.127 0.23 0.90 >=65 0.76 3.40 239.00
26 7/0.16 0.23 1.00 >=65 0.76 3.60 150.00
24 11/0.16 0.23 1.10 >=65 0.76 3.80 94.20
22 17/0.16 0.23 1.30 >=65 0.76 4.20 59.40
20 21/0.178 0.23 1.50 >=65 0.76 4.60 36.70
18 34/0.178 0.23 1.80 >=65 0.76 5.20 23.20
16 26/0.25 0.23 2.10 >=65 0.76 5.80 14.60
UL20417 3C 30 7/0.100 0.23 0.80 >=65 0.76 3.40 381.00
28 7/0.127 0.23 0.90 >=65 0.76 3.50 239.00
26 7/0.16 0.23 1.00 >=65 0.76 3.80 150.00
24 11/0.16 0.23 1.10 >=65 0.76 4.00 94.20
22 17/0.16 0.23 1.30 >=65 0.76 4.40 59.40
20 21/0.178 0.23 1.50 >=65 0.76 4.80 36.70
18 34/0.178 0.23 1.80 >=65 0.76 5.50 23.20
UL20417 4C 30 7/0.100 0.23 0.80 >=65 0.76 4.80 381.00
28 7/0.127 0.23 0.90 >=65 0.76 5.10 239.00
26 7/0.16 0.23 1.00 >=65 0.76 5.30 150.00
24 11/0.16 0.23 1.10 >=65 0.76 5.50 94.20
22 17/0.16 0.23 1.30 >=65 0.76 6.00 59.40
20 21/0.178 0.23 1.50 >=65 0.76 6.50 36.70
UL20417 5C 30 7/0.100 0.23 0.80 >=65 0.76 5.00 381.00
28 7/0.127 0.23 0.90 >=65 0.76 5.30 239.00
26 7/0.16 0.23 1.00 >=65 0.76 5.60 150.00
24 11/0.16 0.23 1.10 >=65 0.76 5.80 94.20
22 17/0.16 0.23 1.30 >=65 0.76 6.40 59.40
UL20417 6C 30 7/0.100 0.23 0.80 >=65 0.76 5.30 381.00
28 7/0.127 0.23 0.90 >=65 0.76 5.60 239.00
26 7/0.16 0.23 1.00 >=65 0.76 5.90 150.00
24 11/0.16 0.23 1.10 >=65 0.76 6.20 94.20
