High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable

Name: High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable
Brand: WCH Cable
Price: 0.14 USD

High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable Manufactures

Brand Name : WCH Cable

Model Number : WCH-UL20549

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD 0.14 per meter

Payment Terms : T/T, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300,000 meters per Month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel

Category : UL TPU Cable

Conductor : High Purity Copper Wire

Jacket : Thermoplastic Polyurethane TPU

Insulation : PE, PP, SR-PVC, TPE, XLPE

Colour : Orange

Application : Control Cable

Contact Now

High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable

Product Structure:

1. Tinned stranded or bare annealed copper conductor.

2. Insulation material: PP, PVC, SR-PVC, HDPE, FR-PE

3. Rated temperature: 80C.

4. Rated voltage: 300V.

5. Uniform insulation wall thickness for easy stripping and cutting.

6. UL VW-1 and CSA FT-1/FT-2 vertical flame test verified.

7. Jacket material: Thermoplastic Polyurethane PU / PUR / TPU

8. Standard executed: Appliance Wiring Material UL758

9. 100% RoHS compliant.

Application:

To be use as Control cable as Internal wiring or external interconnection of appliances or electronic equipment.

Parameters:

Part Number	Specification	Conductor Strands	Jacket Thickness	Conductor Resistance
Ul23751	30 AWG x 2 Cores	7/0.10	35 mils / 0.89mm	381.00
Ul23752	28 AWG x 2 Cores	8/0.12	35 mils / 0.89mm	239.00
Ul23753	26 AWG x 2 Cores	12/0.12	35 mils / 0.89mm	150.00
Ul23754	24 AWG x 2 Cores	19/0.12	35 mils / 0.89mm	94.20
Ul23755	22 AWG x 2 Cores	29/0.12	35 mils / 0.89mm	59.40
Ul23756	20 AWG x 2 Cores	46/0.12	35 mils / 0.89mm	36.70
Ul23757	18 AWG x 2 Cores	73/0.12	35 mils / 0.89mm	23.20
Ul23758	16 AWG x 2 Cores	116/0.12	35 mils / 0.89mm	14.60
Ul23759	30 AWG x 3 Cores	7/0.10	35 mils / 0.89mm	381.00
Ul23760	28 AWG x 3 Cores	8/0.12	35 mils / 0.89mm	239.00
Ul23761	26 AWG x 3 Cores	12/0.12	35 mils / 0.89mm	150.00
Ul23762	24 AWG x 3 Cores	19/0.12	35 mils / 0.89mm	94.20
Ul23763	22 AWG x 3 Cores	29/0.12	35 mils / 0.89mm	59.40
Ul23764	20 AWG x 3 Cores	46/0.12	35 mils / 0.89mm	36.70
Ul23765	18 AWG x 3 Cores	73/0.12	35 mils / 0.89mm	23.20
Ul23766	30 AWG x 4 Cores	7/0.10	35 mils / 0.89mm	381.00
Ul23767	28 AWG x 4 Cores	8/0.12	35 mils / 0.89mm	239.00
Ul23768	26 AWG x 4 Cores	12/0.12	35 mils / 0.89mm	150.00
Ul23769	24 AWG x 4 Cores	19/0.12	35 mils / 0.89mm	94.20
Ul23770	22 AWG x 4 Cores	29/0.12	35 mils / 0.89mm	59.40
Ul23771	20 AWG x 4 Cores	46/0.12	35 mils / 0.89mm	36.70
Ul23772	30 AWG x 5 Cores	7/0.10	35 mils / 0.89mm	381.00
Ul23773	28 AWG x 5 Cores	8/0.12	35 mils / 0.89mm	239.00
Ul23774	26 AWG x 5 Cores	12/0.12	35 mils / 0.89mm	150.00
Ul23775	24 AWG x 5 Cores	19/0.12	35 mils / 0.89mm	94.20
Ul23776	22 AWG x 5 Cores	29/0.12	35 mils / 0.89mm	59.40
Ul23777	30 AWG x 6 Cores	7/0.10	35 mils / 0.89mm	381.00
Ul23778	28 AWG x 6 Cores	8/0.12	35 mils / 0.89mm	239.00
Ul23779	26 AWG x 6 Cores	12/0.12	35 mils / 0.89mm	150.00
Ul23780	24 AWG x 6 Cores	19/0.12	35 mils / 0.89mm	94.20

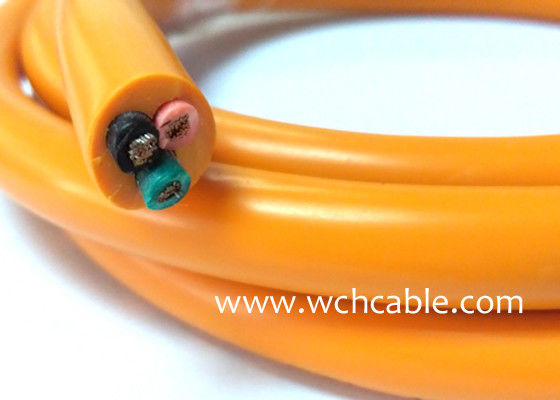

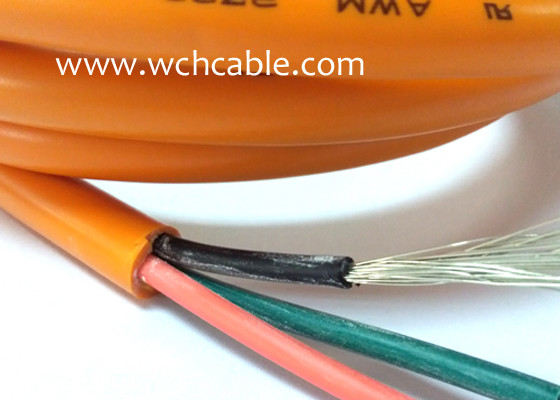

Product Images:

High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable

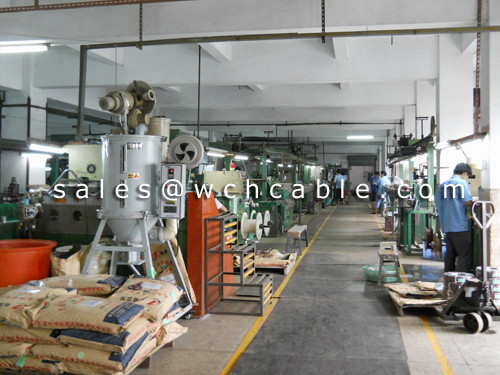

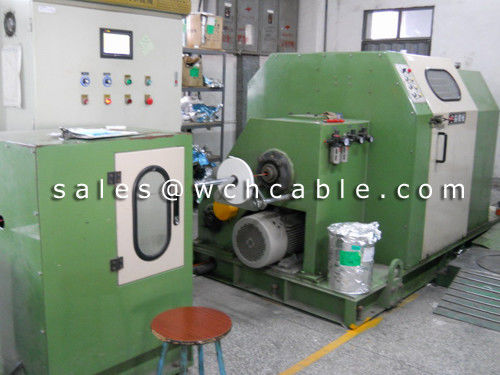

Manufacturing Workshop:

High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable

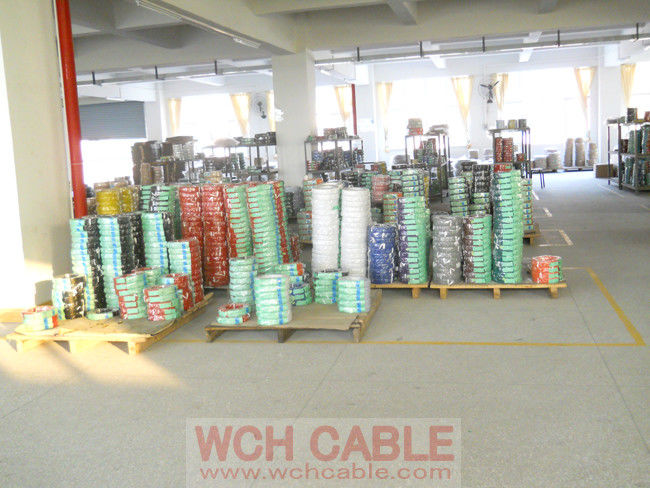

Cable Warehouse:

High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable

High Quality Orange Thermoplastic Polyurethane TPU Coated Multicore Control Cable

Tag: UL TPU Cable (UL Cable, TPU Cable, Polyurethane Cable)
