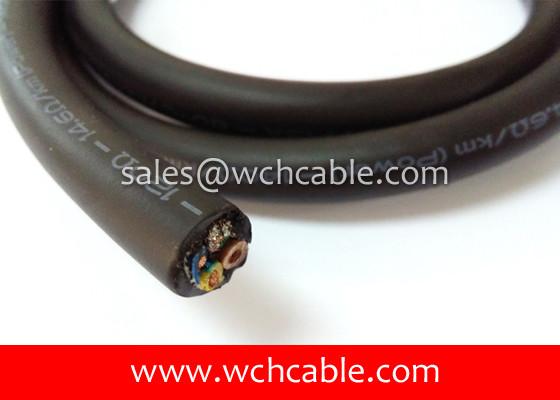

UL20640 Electric Bike TPU Cable

Brand Name : WCH Cable

Model Number : UL20640

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 3050 meters

Price : USD0.24 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 610 meters per carton

Conductor Material : Tin-plated copper wire strands

Rated Temperature : 60°C

Insulation : AWM Compliant Materials

Rated Voltage : 30V

Jacket Material : Thermoplastic Polyurethane TPU

Executed Standard : UL758, UL1581, AWM

Application : Electric Bike Connection

Contact Now

UL20640 Electric Bike TPU Cable

Style Number: UL20640


Rated Temperature: 60 deg C.
Rated Voltage: 30V.
Flammability: UL VW-1 passed.
Uniform insulation thickness for smooth stripping.

Highly flexible, suitable for process of spring curly cord.

Standard: Appliance Wiring Material UL758.
Other approvals: Cul, CSA / Canadian Standards Association.


Application: electric bike interconnection

Style Number Conductor Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL20640 3C 28 7/0.127 0.23 0.90 1.143 4.73 239.00
3C 26 7/0.16 0.23 1.00 1.143 4.94 150.00
3C 24 11/0.16 0.23 1.10 1.143 5.16 94.20
3C 22 17/0.16 0.23 1.30 1.143 5.59 59.40
3C 20 21/0.178 0.23 1.50 1.143 6.02 36.70
3C 18 34/0.178 0.23 1.70 1.143 6.45 23.20
3C 16 26/0.254 0.23 2.10 1.143 7.31 14.60
4C 28 7/0.127 0.23 0.90 1.143 4.96 239.00
4C 26 7/0.16 0.23 1.00 1.143 5.20 150.00
4C 24 11/0.16 0.23 1.10 1.143 5.44 94.20
4C 22 17/0.16 0.23 1.30 1.143 5.92 59.40
4C 20 21/0.178 0.23 1.50 1.143 6.41 36.70
4C 18 34/0.178 0.23 1.70 1.143 6.89 23.20
4C 16 26/0.254 0.23 2.10 1.143 7.86 14.60
5C 28 7/0.127 0.23 0.90 1.143 5.22 239.00
5C 26 7/0.16 0.23 1.00 1.143 5.49 150.00
5C 24 11/0.16 0.23 1.10 1.143 5.76 94.20
5C 22 17/0.16 0.23 1.30 1.143 6.30 59.40
5C 20 21/0.178 0.23 1.50 1.143 6.84 36.70
5C 18 34/0.178 0.23 1.70 1.143 7.38 23.20
5C 16 26/0.254 0.23 2.10 1.143 8.46 14.60
6C 28 7/0.127 0.23 0.90 1.143 5.49 239.00
6C 26 7/0.16 0.23 1.00 1.143 5.79 150.00
6C 24 11/0.16 0.23 1.10 1.143 6.09 94.20
6C 22 17/0.16 0.23 1.30 1.143 6.69 59.40
6C 20 21/0.178 0.23 1.50 1.143 7.29 36.70
6C 18 34/0.178 0.23 1.70 1.143 7.89 23.20
6C 16 26/0.254 0.23 2.10 1.143 9.09 14.60
7C 28 7/0.127 0.23 0.90 1.143 5.54 239.00
7C 26 7/0.16 0.23 1.00 1.143 5.84 150.00
7C 24 11/0.16 0.23 1.10 1.143 6.15 94.20
7C 22 17/0.16 0.23 1.30 1.143 6.76 59.40
7C 20 21/0.178 0.23 1.50 1.143 7.37 36.70
7C 18 34/0.178 0.23 1.70 1.143 7.98 23.20
7C 16 26/0.254 0.23 2.10 1.143 9.20 14.60
8C 28 7/0.127 0.23 0.90 1.143 5.73 239.00
8C 26 7/0.16 0.23 1.00 1.143 6.05 150.00
8C 24 11/0.16 0.23 1.10 1.143 6.38 94.20
8C 22 17/0.16 0.23 1.30 1.143 7.03 59.40
8C 20 21/0.178 0.23 1.50 1.143 7.69 36.70
8C 18 34/0.178 0.23 1.70 1.143 8.34 23.20
9C 28 7/0.127 0.23 0.90 1.143 5.90 239.00
9C 26 7/0.16 0.23 1.00 1.143 6.25 150.00
9C 24 11/0.16 0.23 1.10 1.143 6.60 94.20
9C 22 17/0.16 0.23 1.30 1.143 7.29 59.40
9C 20 21/0.178 0.23 1.50 1.143 7.98 36.70
