UL21140 Crane Control Panel Cable PUR Jacket Rated 60C 1000V

Product Categories
WCH Cable Industrial Co., Ltd.
Contact Now

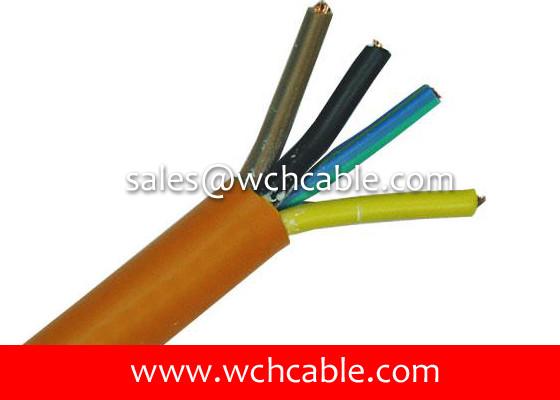

UL21140 Crane Control Panel Cable PUR Jacket Rated 60C 1000V

Brand Name : WCH Cable

Model Number : UL21140

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD 0.145 per meter

Payment Terms : D/P, T/T, L/C, D/A, Western Union, MoneyGram

Supply Ability : 300,000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel or spool

Style Number : UL21140

Application : Crane Control Panel Connnect

Rated Voltage : 600V, 1000V

Conductor : Extremely High Purity Copper

Rated Temperature : 60°C

Insulation : AWM Material

Standard : UL758, UL1581

Jacket : Polyurethane PUR

Contact Now

UL21140 Crane Control Panel Cable PUR Jacket Rated 60C 1000V

Conductor material: high purity copper wires, bare or tinned, optional.

Application: crane control panel connection.

Function: sunlight resistant.

Spiral shield or braided shield screen as adopted upon request.

Style Number Conductor Quantity Conductor Structure Insulation
Thickness		 Insulation Diameter Shield Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
UL21140 2C 30 7/0.100 0.76 1.90 ≥65 1.15 6.70 381.00
2C 28 7/0.127 0.76 2.00 ≥65 1.15 7.00 239.00
2C 26 7/0.16 0.76 2.10 ≥65 1.15 7.10 150.00
2C 24 11/0.16 0.76 2.20 ≥65 1.15 7.30 94.20
2C 22 17/0.16 0.76 2.40 ≥65 1.15 7.70 59.40
2C 20 21/0.178 0.76 2.50 ≥65 1.15 8.10 36.70
2C 18 34/0.178 0.76 2.80 ≥65 1.15 8.70 23.20
2C 16 26/0.25 0.76 3.10 ≥65 1.15 10.90 14.60
3C 30 7/0.100 0.76 1.90 ≥65 1.15 8.60 381.00
3C 28 7/0.127 0.76 2.00 ≥65 1.15 8.80 239.00
3C 26 7/0.16 0.76 2.10 ≥65 1.15 9.00 150.00
3C 24 11/0.16 0.76 2.20 ≥65 1.15 9.20 94.20
3C 22 17/0.16 0.76 2.40 ≥65 1.15 9.60 59.40
3C 20 21/0.178 0.76 2.50 ≥65 1.15 10.10 36.70
3C 18 34/0.178 0.76 2.80 ≥65 1.15 10.70 23.20
4C 30 7/0.100 0.76 1.90 ≥65 1.15 8.80 381.00
4C 28 7/0.127 0.76 2.00 ≥65 1.15 9.00 239.00
4C 26 7/0.16 0.76 2.10 ≥65 1.15 9.30 150.00
4C 24 11/0.16 0.76 2.20 ≥65 1.15 9.60 94.20
4C 22 17/0.16 0.76 2.40 ≥65 1.15 10.00 59.40
4C 20 21/0.178 0.76 2.50 ≥65 1.15 10.50 36.70
5C 30 7/0.100 0.76 1.90 ≥65 1.15 9.10 381.00
5C 28 7/0.127 0.76 2.00 ≥65 1.15 9.40 239.00
5C 26 7/0.16 0.76 2.10 ≥65 1.15 9.50 150.00
5C 24 11/0.16 0.76 2.20 ≥65 1.15 9.90 94.20
5C 22 17/0.16 0.76 2.40 ≥65 1.15 10.60 59.40
6C 30 7/0.100 0.76 1.90 ≥65 1.15 9.50 381.00
6C 28 7/0.127 0.76 2.00 ≥65 1.15 9.80 239.00
6C 26 7/0.16 0.76 2.10 ≥65 1.15 10.10 150.00
6C 24 11/0.16 0.76 2.20 ≥65 1.15 10.40 94.20

UL21140 Crane Control Panel Cable PUR Jacket Rated 60C 1000V

Style Number: UL21140
Rated Grade: 60 deg C, 600 Vac, 1000 Vac, Cable flame.
Conductor: Above 99.99% High purity copper wires
Screen Shield: Optional
Jacket: Extruded Polyurethane PUR
Average thickness: 45 mils (Ref.)
Minimum thickness: 36 mils (Ref.)
Specification: Detailed specification is to be customized per customer's requirement.
Executed Standard: Appliance Wiring Material UL 758.
Application: Internal wiring of electronic equipment and appliances.
Manufacturer: WCH Cable Industrial Co., Ltd.
Manufacture Location: Dongguan, Guangdong, China
Other Name of the Cable: UL Cable, PUR Cable, External Cable, High Voltage Cable, UL21140 Cable

UL21140 Crane Control Panel Cable PUR Jacket Rated 60C 1000V

Tag: control cable, panel control cable
