UL20417 Operator Cabin Cable PUR Jacket Rated 60C 30V

Product Categories
WCH Cable Industrial Co., Ltd.
Contact Now

UL20417 Operator Cabin Cable PUR Jacket Rated 60C 30V

Brand Name : WCH Cable

Model Number : UL20417

Certification : UL, CUL, AWM

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD 0.16 per meter

Payment Terms : D/P, T/T, L/C, D/A, Western Union, MoneyGram

Supply Ability : 300,000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel or spool

Application : Operator Cabin

Rated Voltage : 30V

Conductor Material : High Purity Copper Wire

Rated Temperature : 60°C

Insulation Material : AWM Materials

Flammability : VW-1, FT1, FT2

Sheath Material : Polyurethane PUR

Contact Now

UL20417 Operator Cabin Cable PUR Jacket Rated 60C 30V

Conductor: pure copper wires

Insulation: AWM compliant materials

Softness: flexible, easy bending

Uniform thickness for smooth stripping process of assembly.

Style Number Conductor Quantity Conductor Size Insulation
Thickness		 Insulation Diameter Screen Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
UL20417 2C 30 7/0.100 0.23 0.80 ≥65 0.76 3.20 381.00
2C 28 7/0.127 0.23 0.90 ≥65 0.76 3.40 239.00
2C 26 7/0.16 0.23 1.00 ≥65 0.76 3.60 150.00
2C 24 11/0.16 0.23 1.10 ≥65 0.76 3.80 94.20
2C 22 17/0.16 0.23 1.30 ≥65 0.76 4.20 59.40
2C 20 21/0.178 0.23 1.50 ≥65 0.76 4.60 36.70
2C 18 34/0.178 0.23 1.80 ≥65 0.76 5.20 23.20
2C 16 26/0.25 0.23 2.10 ≥65 0.76 5.80 14.60
3C 30 7/0.100 0.23 0.80 ≥65 0.76 3.40 381.00
3C 28 7/0.127 0.23 0.90 ≥65 0.76 3.50 239.00
3C 26 7/0.16 0.23 1.00 ≥65 0.76 3.80 150.00
3C 24 11/0.16 0.23 1.10 ≥65 0.76 4.00 94.20
3C 22 17/0.16 0.23 1.30 ≥65 0.76 4.40 59.40
3C 20 21/0.178 0.23 1.50 ≥65 0.76 4.80 36.70
3C 18 34/0.178 0.23 1.80 ≥65 0.76 5.50 23.20
4C 30 7/0.100 0.23 0.80 ≥65 0.76 4.80 381.00
4C 28 7/0.127 0.23 0.90 ≥65 0.76 5.10 239.00
4C 26 7/0.16 0.23 1.00 ≥65 0.76 5.30 150.00
4C 24 11/0.16 0.23 1.10 ≥65 0.76 5.50 94.20
4C 22 17/0.16 0.23 1.30 ≥65 0.76 6.00 59.40
4C 20 21/0.178 0.23 1.50 ≥65 0.76 6.50 36.70
5C 30 7/0.100 0.23 0.80 ≥65 0.76 5.00 381.00
5C 28 7/0.127 0.23 0.90 ≥65 0.76 5.30 239.00
5C 26 7/0.16 0.23 1.00 ≥65 0.76 5.60 150.00
5C 24 11/0.16 0.23 1.10 ≥65 0.76 5.80 94.20
5C 22 17/0.16 0.23 1.30 ≥65 0.76 6.40 59.40
6C 30 7/0.100 0.23 0.80 ≥65 0.76 5.30 381.00
6C 28 7/0.127 0.23 0.90 ≥65 0.76 5.60 239.00
6C 26 7/0.16 0.23 1.00 ≥65 0.76 5.90 150.00
6C 24 11/0.16 0.23 1.10 ≥65 0.76 6.20 94.20

UL20417 Operator Cabin Cable PUR Jacket Rated 60C 30V

Style Number: UL20417
Rated Grade: 60 deg C, 30 Vac, Cable flame.
Conductor: Above 99.99% High purity copper wires
Screen Shield: Optional
Jacket: Extruded Polyurethane PUR
Average thickness: 30 mils (Ref.)
Minimum thickness: 24 mils (Ref.)
Specification: Detailed specification is to be customized per customer's requirement.
Executed Standard: Appliance Wiring Material UL 758.
Application: External wiring interconnection of electronic equipment.
Manufacturer: WCH Cable Industrial Co., Ltd.
Manufacture Location: Dongguan, Guangdong, China
Other Name of the Cable: UL Cable, PUR Cable, Polyurethane Cable, 30V Cable, UL20417 Cable

UL20417 Operator Cabin Cable PUR Jacket Rated 60C 30V

Tag: pur cable, pur jacketed cable


UL20417 Operator Cabin Cable PUR Jacket Rated 60C 30V Manufactures

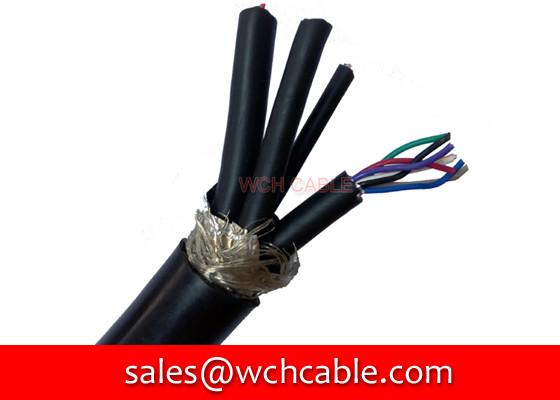

UL20417 Operator Cabin Cable PUR Jacket Rated 60C 30V Images
