UL20351 Medical Equipment Connect Cable

Name: UL20351 Medical Equipment Connect Cable
Brand: WCH Cable
Price: 0.21 USD

Brand Name : WCH Cable

Model Number : UL20351

Certification : UL, CUL, AWM

Place of Origin : Dongguan, China

MOQ : 3050 meters

Price : USD 0.21 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 600,000 meters per week

Delivery Time : 9 days for ready goods

Packaging Details : 610 meters per carton

Copper : Tin-plate Copper Strands

Rated Temperature : 60°C

Rated Voltage : 300V

Applied Standard : UL758, UL1581

Insulation : AWM complied material

Jacket Material : Thermoplastic Polyurethane TPU

Brand name : WCH Cable

Application : Medical Equipment Connect Purpose

Contact Now

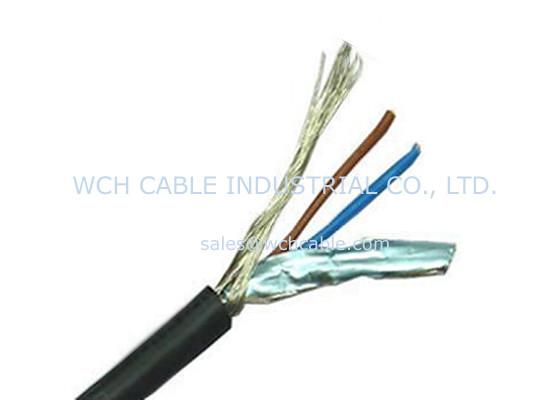

UL20351 Medical Equipment Connect Cable

Conductor: High Purity Tin-plate Copper Wire Strands.
Insulation: AWM complied materials.
Jacket: TPU / Thermoplastic Polyurethane
Rated Temperature: 60 Deg C
Rated Voltage: 300V
Applied Standard: UL758, UL20351

Application: Medical Equipment Connect Purpose

Style Number	Core Quantity	Copper Conductor		Insulation Thickness	Insulation Diameter	Jacket Thickness	Overall Diameter	Conductor Resistance
Style Number	Core Quantity	AWG	No/mm	mm	mm	mm	mm	Ω/KM
UL20351	2C	30	7/0.100	0.25	0.80	0.80	3.30	381.00
	2C	28	7/0.127	0.25	0.90	0.80	3.50	239.00
	2C	26	7/0.160	0.25	1.00	0.80	3.80	150.00
	2C	24	11/0.160	0.25	1.10	0.80	4.10	94.20
	2C	22	17/0.160	0.25	1.30	0.80	4.50	59.40
	2C	20	21/0.178	0.25	1.50	0.80	4.90	36.70
	2C	18	34/0.178	0.25	1.80	0.80	5.50	23.20
	3C	30	7/0.100	0.25	0.80	0.80	3.60	381.00
	3C	28	7/0.127	0.25	0.90	0.80	3.90	239.00
	3C	26	7/0.160	0.25	1.00	0.80	4.10	150.00
	3C	24	11/0.160	0.25	1.10	0.80	4.40	94.20
	3C	22	17/0.160	0.25	1.30	0.80	4.70	59.40
	3C	20	21/0.178	0.25	1.50	0.80	5.20	36.70
	3C	18	34/0.178	0.25	1.80	0.80	5.90	23.20
	4C	30	7/0.100	0.25	0.80	1.00	3.80	381.00
	4C	28	7/0.127	0.25	0.90	1.00	4.10	239.00
	4C	26	7/0.160	0.25	1.00	1.00	4.30	150.00
	4C	24	11/0.160	0.25	1.10	1.00	4.60	94.20
	4C	22	17/0.160	0.25	1.30	1.00	5.00	59.40
	4C	20	21/0.178	0.25	1.50	1.00	5.60	36.70
	4C	18	34/0.178	0.25	1.80	1.00	6.30	23.20
	5C	30	7/0.100	0.25	0.80	1.00	4.10	381.00
	5C	28	7/0.127	0.25	0.90	1.00	4.40	239.00
	5C	26	7/0.160	0.25	1.00	1.00	4.70	150.00
	5C	24	11/0.160	0.25	1.10	1.00	4.90	94.20
	5C	22	17/0.160	0.25	1.30	1.00	5.50	59.40
	5C	20	21/0.178	0.25	1.50	1.00	6.20	36.70
	5C	18	34/0.178	0.25	1.80	1.00	6.90	23.20
	6C	30	7/0.100	0.25	0.80	1.00	4.40	381.00
	6C	28	7/0.127	0.25	0.90	1.00	4.80	239.00
	6C	26	7/0.160	0.25	1.00	1.00	5.10	150.00
	6C	24	11/0.160	0.25	1.10	1.00	5.50	94.20
	6C	22	17/0.160	0.25	1.30	1.00	5.90	59.40
	6C	20	21/0.178	0.25	1.50	1.00	6.50	36.70
	6C	18	34/0.178	0.25	1.80	1.00	7.40	23.20

UL20351 Medical Equipment Connect Cable

Tag: UL20351, medical cable, tpu cable
