UL20512 Logic Controller Wiring TPU Cable

Brand Name : WCH Cable

Model Number : UL20512

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 3050 meters

Price : USD0.20 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000 meters per week

Delivery Time : 9 days for ready goods

Packaging Details : 610 meters per carton

Conductor : Tin plated copper wire strands.

Rated Temperature : 60 Deg C

Insulation : AWM Appliant Material

Rated Voltage : 30V

Jacket Material : Thermoplastic Polyurethane TPU

Standard Reference : UL758, UL1581

Application : Logic Controller Wiring Purpose

Contact Now

UL20512 Logic Controller Wiring TPU Cable

Conductor: Tin plated copper wire strands.
Insulation: Quality materials complying with AWM standard.
Screen Shield: Foil, spiral shield, copper braiding, optional.
Jacket: Thermoplastic Polyurethane TPU


Rated Temperature: 60 deg C.
Rated Voltage: 30V.
Flammability: UL VW-1 passed.
Uniform insulation thickness for smooth stripping.

Standard: Appliance Wiring Material UL758.
Other approvals: Cul, CSA / Canadian Standards Association.


Application: Logic controller wiring purpose.

Style Number Core Quantity Copper Conductor Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL20512 2C 30 7/0.100 0.23 0.80 0.76 3.60 381.00
2C 28 7/0.127 0.23 0.90 0.76 3.90 239.00
2C 26 7/0.16 0.23 1.00 0.76 4.00 150.00
2C 24 11/0.16 0.23 1.10 0.76 4.20 94.20
2C 22 17/0.16 0.23 1.30 0.76 4.60 59.40
2C 20 21/0.178 0.23 1.50 0.76 5.00 36.70
2C 18 34/0.178 0.23 1.80 0.76 5.60 23.20
2C 16 26/0.25 0.23 2.00 0.76 7.80 14.60
3C 30 7/0.100 0.23 0.80 0.76 5.50 381.00
3C 28 7/0.127 0.23 0.90 0.76 5.70 239.00
3C 26 7/0.16 0.23 1.00 0.76 5.90 150.00
3C 24 11/0.16 0.23 1.10 0.76 6.10 94.20
3C 22 17/0.16 0.23 1.30 0.76 6.50 59.40
3C 20 21/0.178 0.23 1.50 0.76 7.00 36.70
3C 18 34/0.178 0.23 1.80 0.76 7.60 23.20
4C 30 7/0.100 0.23 0.80 0.76 5.70 381.00
4C 28 7/0.127 0.23 0.90 0.76 5.90 239.00
4C 26 7/0.16 0.23 1.00 0.76 6.20 150.00
4C 24 11/0.16 0.23 1.10 0.76 6.50 94.20
4C 22 17/0.16 0.23 1.30 0.76 6.90 59.40
4C 20 21/0.178 0.23 1.50 0.76 7.40 36.70
5C 30 7/0.100 0.23 0.80 0.76 6.00 381.00
5C 28 7/0.127 0.23 0.90 0.76 6.30 239.00
5C 26 7/0.16 0.23 1.00 0.76 6.40 150.00
5C 24 11/0.16 0.23 1.10 0.76 6.80 94.20
5C 22 17/0.16 0.23 1.30 0.76 7.40 59.40
6C 30 7/0.100 0.23 0.80 0.76 6.40 381.00
6C 28 7/0.127 0.23 0.90 0.76 6.70 239.00
6C 26 7/0.16 0.23 1.00 0.76 7.00 150.00
6C 24 11/0.16 0.23 1.10 0.76 7.30 94.20

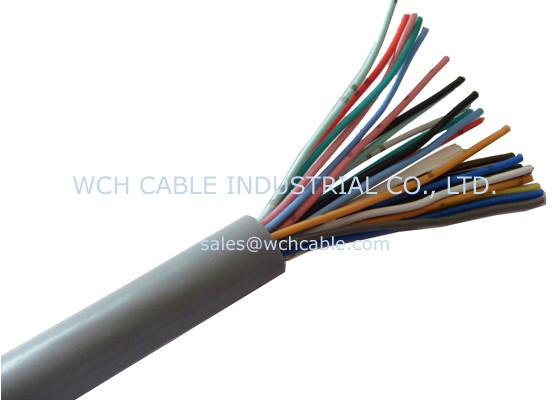

UL20512 Logic Controller Wiring TPU Cable

UL20512 Logic Controller Wiring TPU Cable

UL20512 Logic Controller Wiring TPU Cable

UL20512 Logic Controller Wiring TPU Cable

UL20512 Logic Controller Wiring TPU Cable

UL20512 Logic Controller Wiring TPU Cable
