UL20554 Electric Motor Connect TPU Jacketed Cable

Name: UL20554 Electric Motor Connect TPU Jacketed Cable
Brand: WCH Cable
Price: 0.22 USD

Brand Name : WCH Cable

Model Number : UL20554

Certification : UL, CUL, AWM

Place of Origin : Dongguan, China

MOQ : 3050 meters

Price : USD0.22 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000 meters per week

Delivery Time : 9 days for ready goods

Packaging Details : 610 meters per carton

Conductor : Tinned copper wire strands

Rated Temperature : 80°C

Insulation : AWM Appliant Material

Rated Voltage : 30V

Jacket Material : Thermoplastic Polyurethane TPU

Standard Reference : UL758, UL1581, AWM

Eco Status : RoHS2.0, Reach

Application : Electric Motor Connect

Contact Now

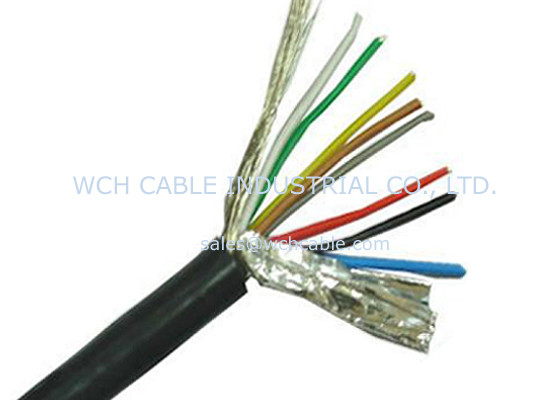

UL20554 Electric Motor Connect TPU Jacketed Cable

Conductor: tinned copper wire strands.
Insulation: Quality materials complying with AWM standard.
Screen Shield: Foil, spiral shield, copper braiding, optional.
Jacket: Thermoplastic Polyurethane TPU.

Rated Temperature: 80 deg C.
Rated Voltage: 30V.
Flammability: UL VW-1 passed.
Uniform insulation thickness for smooth stripping.

Standard: Appliance Wiring Material UL758.
Other approvals: Cul, CSA / Canadian Standards Association.

Application: Electric motor interconnection

Style Number	Core Quantity	Copper Conductor		Insulation Thickness	Insulation Diameter	Jacket Thickness	Overall Diameter	Conductor Resistance
Style Number	Core Quantity	AWG	No/mm	mm	mm	mm	mm	Ω/KM
UL20554	2C	30	7/0.100	0.23	0.80	0.38	3.20	381.00
	2C	28	7/0.127	0.23	0.90	0.38	3.40	239.00
	2C	26	7/0.16	0.23	1.00	0.38	3.60	150.00
	2C	24	11/0.16	0.23	1.10	0.38	3.80	94.20
	2C	22	17/0.16	0.23	1.30	0.38	4.20	59.40
	2C	20	21/0.178	0.23	1.50	0.38	4.60	36.70
	2C	18	34/0.178	0.23	1.80	0.38	5.20	23.20
	2C	16	26/0.25	0.23	2.00	0.38	5.80	14.60
	3C	30	7/0.100	0.23	0.80	0.38	3.40	381.00
	3C	28	7/0.127	0.23	0.90	0.38	3.50	239.00
	3C	26	7/0.16	0.23	1.00	0.38	3.80	150.00
	3C	24	11/0.16	0.23	1.10	0.38	4.00	94.20
	3C	22	17/0.16	0.23	1.30	0.38	4.40	59.40
	3C	20	21/0.178	0.23	1.50	0.38	4.80	36.70
	3C	18	34/0.178	0.23	1.80	0.38	5.50	23.20
	4C	30	7/0.100	0.23	0.80	0.38	4.80	381.00
	4C	28	7/0.127	0.23	0.90	0.38	5.10	239.00
	4C	26	7/0.16	0.23	1.00	0.38	5.30	150.00
	4C	24	11/0.16	0.23	1.10	0.38	5.50	94.20
	4C	22	17/0.16	0.23	1.30	0.38	6.00	59.40
	4C	20	21/0.178	0.23	1.50	0.38	6.50	36.70
	5C	30	7/0.100	0.23	0.80	0.38	5.00	381.00
	5C	28	7/0.127	0.23	0.90	0.38	5.30	239.00
	5C	26	7/0.16	0.23	1.00	0.38	5.60	150.00
	5C	24	11/0.16	0.23	1.10	0.38	5.80	94.20
	5C	22	17/0.16	0.23	1.30	0.38	6.40	59.40
	6C	30	7/0.100	0.23	0.80	0.38	5.30	381.00
	6C	28	7/0.127	0.23	0.90	0.38	5.60	239.00
	6C	26	7/0.16	0.23	1.00	0.38	5.90	150.00
	6C	24	11/0.16	0.23	1.10	0.38	6.20	94.20

UL20554 Electric Motor Connect TPU Jacketed Cable

Tag: UL20554, tpu cable
