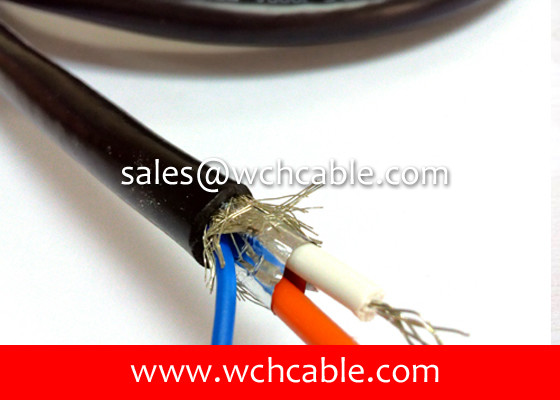

UL21319 Safety Management Home Appliances TPU Cable 80C 150V

Brand Name : WCH Cable

Model Number : UL21319

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD 0.130 per meter

Payment Terms : D/P, T/T, L/C, D/A, Western Union, MoneyGram

Supply Ability : 3,000,000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel or spool

Style Number : UL21319

Conductor Material : Highly Pure Copper Wires

Rated Temperature : 80°C

Insulation Material : AWM Complied Material

Rated Voltage : 150V

Jacket Material : Thermoplastic TPU

Application : External Connection

Jacket Thickness : 30 mils Minimum

Contact Now

UL21319 Safety Management Home Appliances TPU Cable 80C 150V

WCH Cable integrates business worldwidely with providing the competitive advantage of safe, cost effective, and innovative products. WCH Cable products are applied widely for all major industries including government, military, automotive, aerospace, telecommunication and electronic appliances.

TPU cable style number: UL21319;

Rated: 80°C, 150V;

Application: safety management home appliances interconnection;

Standard: UL758, UL1581.

Style Number Core Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21319 2C 30 7/0.100 0.23 0.80 0.76 3.20 381.00
2C 28 7/0.127 0.23 0.90 0.76 3.40 239.00
2C 26 7/0.16 0.23 1.00 0.76 3.60 150.00
2C 24 11/0.16 0.23 1.10 0.76 3.80 94.20
2C 22 17/0.16 0.23 1.30 0.76 4.20 59.40
2C 20 21/0.178 0.23 1.50 0.76 4.60 36.70
2C 18 34/0.178 0.23 1.80 0.76 5.20 23.20
2C 16 26/0.25 0.23 2.00 0.76 5.80 14.60
3C 30 7/0.100 0.23 0.80 0.76 3.40 381.00
3C 28 7/0.127 0.23 0.90 0.76 3.50 239.00
3C 26 7/0.16 0.23 1.00 0.76 3.80 150.00
3C 24 11/0.16 0.23 1.10 0.76 4.00 94.20
3C 22 17/0.16 0.23 1.30 0.76 4.40 59.40
3C 20 21/0.178 0.23 1.50 0.76 4.80 36.70
3C 18 34/0.178 0.23 1.80 0.76 5.50 23.20
4C 30 7/0.100 0.23 0.80 0.76 4.80 381.00
4C 28 7/0.127 0.23 0.90 0.76 5.10 239.00
4C 26 7/0.16 0.23 1.00 0.76 5.30 150.00
4C 24 11/0.16 0.23 1.10 0.76 5.50 94.20
4C 22 17/0.16 0.23 1.30 0.76 6.00 59.40
4C 20 21/0.178 0.23 1.50 0.76 6.50 36.70
5C 30 7/0.100 0.23 0.80 0.76 5.00 381.00
5C 28 7/0.127 0.23 0.90 0.76 5.30 239.00
5C 26 7/0.16 0.23 1.00 0.76 5.60 150.00
5C 24 11/0.16 0.23 1.10 0.76 5.80 94.20
5C 22 17/0.16 0.23 1.30 0.76 6.40 59.40
6C 30 7/0.100 0.23 0.80 0.76 5.30 381.00
6C 28 7/0.127 0.23 0.90 0.76 5.60 239.00
6C 26 7/0.16 0.23 1.00 0.76 5.90 150.00
6C 24 11/0.16 0.23 1.10 0.76 6.20 94.20

UL21319 Safety Management Home Appliances TPU Cable 80C 150V

Tag: UL21319, cable, tpu cable


UL21319 Safety Management Home Appliances TPU Cable 80C 150V Manufactures

UL21319 Safety Management Home Appliances TPU Cable 80C 150V Images
