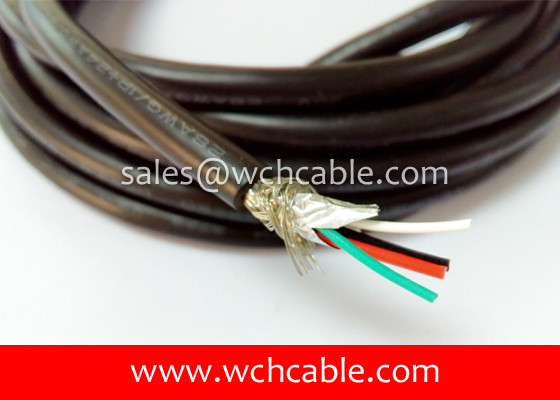

UL22030 Sunlight Resistant Electric Equipment Wiring TPU Cable 80C 300V

Brand Name : WCH Cable

Model Number : UL22030

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD 0.130 per meter

Payment Terms : D/P, T/T, L/C, D/A, Western Union, MoneyGram

Supply Ability : 3,000,000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel or spool

Style Number : UL22030

Conductor Material : Highly Pure Copper Wires

Rated Temperature : 80°C

Insulation Material : AWM Complied Material

Rated Voltage : 300V

Jacket Material : Thermoplastic TPU

Shield : Spiral, or Braid

Jacket Thickness : 15 mils Minimum

Contact Now

UL22030 Sunlight Resistant Electric Equipment Wiring TPU Cable 80C 300V

TPU cable style number: UL22030

Rated: 80°C, 300V

Application: electric equipment wiring purpose.

Applied standard: UL758, UL1581, CSA22.2.

Manufacturer: WCH Cable Industrial Co., Ltd.

100% RoHS and Reach compliant.

Sunlight resistant.

Style Number Core Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL22030 2C 30 7/0.100 0.23 0.80 0.38 3.00 381.00
2C 28 7/0.127 0.23 0.90 0.38 3.30 239.00
2C 26 7/0.16 0.23 1.00 0.38 3.50 150.00
2C 24 11/0.16 0.23 1.10 0.38 3.70 94.20
2C 22 17/0.16 0.23 1.30 0.38 4.10 59.40
2C 20 21/0.178 0.23 1.50 0.38 4.50 36.70
2C 18 34/0.178 0.23 1.80 0.38 5.20 23.20
2C 16 26/0.25 0.23 2.00 0.38 5.60 14.60
3C 30 7/0.100 0.23 0.80 0.38 3.30 381.00
3C 28 7/0.127 0.23 0.90 0.38 3.50 239.00
3C 26 7/0.16 0.23 1.00 0.38 3.70 150.00
3C 24 11/0.16 0.23 1.10 0.38 3.90 94.20
3C 22 17/0.16 0.23 1.30 0.38 4.30 59.40
3C 20 21/0.178 0.23 1.50 0.38 4.80 36.70
3C 18 34/0.178 0.23 1.80 0.38 5.20 23.20
4C 30 7/0.100 0.23 0.80 0.38 3.50 381.00
4C 28 7/0.127 0.23 0.90 0.38 3.80 239.00
4C 26 7/0.16 0.23 1.00 0.38 4.00 150.00
4C 24 11/0.16 0.23 1.10 0.38 4.20 94.20
4C 22 17/0.16 0.23 1.30 0.38 4.70 59.40
4C 20 21/0.178 0.23 1.50 0.38 5.20 36.70
5C 30 7/0.100 0.23 0.80 0.38 3.80 381.00
5C 28 7/0.127 0.23 0.90 0.38 4.20 239.00
5C 26 7/0.16 0.23 1.00 0.38 4.40 150.00
5C 24 11/0.16 0.23 1.10 0.38 4.70 94.20
5C 22 17/0.16 0.23 1.30 0.38 5.30 59.40
6C 30 7/0.100 0.23 0.80 0.38 4.20 381.00
6C 28 7/0.127 0.23 0.90 0.38 4.40 239.00
6C 26 7/0.16 0.23 1.00 0.38 4.70 150.00
6C 24 11/0.16 0.23 1.10 0.38 5.00 94.20

UL22030 Sunlight Resistant Electric Equipment Wiring TPU Cable 80C 300V
UL22030 Sunlight Resistant Electric Equipment Wiring TPU Cable 80C 300V
