UL TPU Cable, AWM Style UL21866 22AWG 3C FT2 80°C 90V, PP / TPU

Product Categories

WCH Cable Industrial Co., Ltd.

Contact Now

Name: UL TPU Cable AWM Style UL21866 22AWG 3C FT2 80C 90V PP TPU
Brand: WCH Cable
Price: 0.125 USD

Brand Name : WCH Cable

Model Number : UL21866

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD0.125 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000,000 meters per week

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel

Style Number : UL21866

Conductor Material : Highly pure copper wire

Rated Temperature : 80°C

Insulation Material : Polypropylene PP

Rated Voltage : 90V

Sheath Material : Thermoplastic polyurethane TPU

Alternative Style : UL21327

Contact Now

UL TPU Cable, AWM Style UL21866 22AWG 3C FT2 80°C 90V, PP / TPU

Conductor size: 22AWG

Wire assembly: 3 cores

Insulation color: Blue, green, yellow.

Insulation material: PP.

Shield: no shield.

Sheath color: Black.

Sheath material: TPU

Sheath thickness: 0.46mm

Flammability: FT2.

Rated temperature: 80°C

Rated voltage: 90V

Conductor resistance: 60.7Ω/km

Insulation resistance: 100mΩ/km

Recommended Use: signal control wiring.

Alternative Style: UL21327

Remark: color of wires or sheath can be changed according to customer's requirement.

UL TPU Cable, AWM Style UL21866 22AWG 3C FT2 80°C 90V, PP / TPU

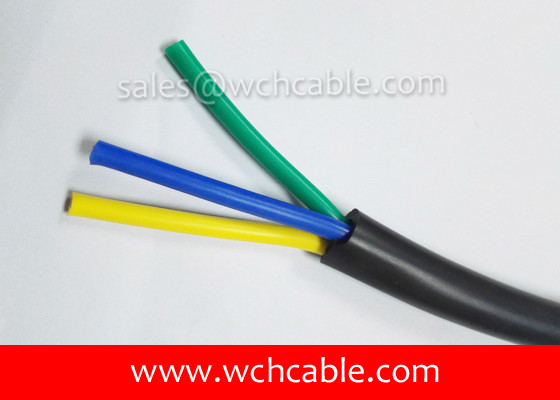

UL TPU Cable, AWM Style UL21866 22AWG 3C FT2 80°C 90V, PP / TPU Images
